Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Inside Handle Cable (1) - Install - Front Side Door Inside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Cable (1) - Install - Front Side Door Outside Handle Cable Replacement
Transfer components as necessary.
Courtesy of GENERAL MOTORS COMPANY

Front Door Outside Handle Bracket (1) @ the Front Side Door Latch (2) - Install

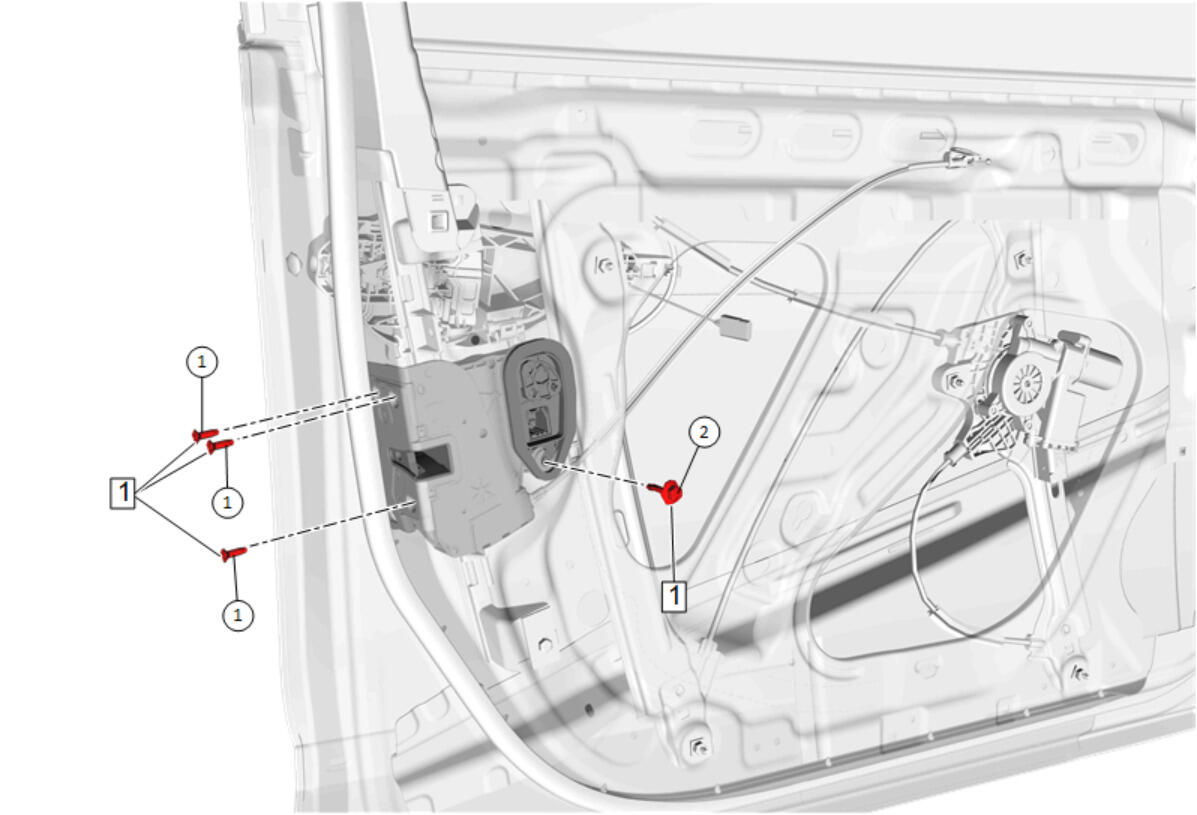

Fig 1: Identifying Front Side Door Latch Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Install and torque the four latch bolts in proper sequence to prevent damage to the latch mechanism.

Front Side Door Latch Bolt (1) @ Front Side Door Latch - Install and tighten [4x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket (1) - Install - Front Side Door Outside Handle Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement
Courtesy of GENERAL MOTORS COMPANY

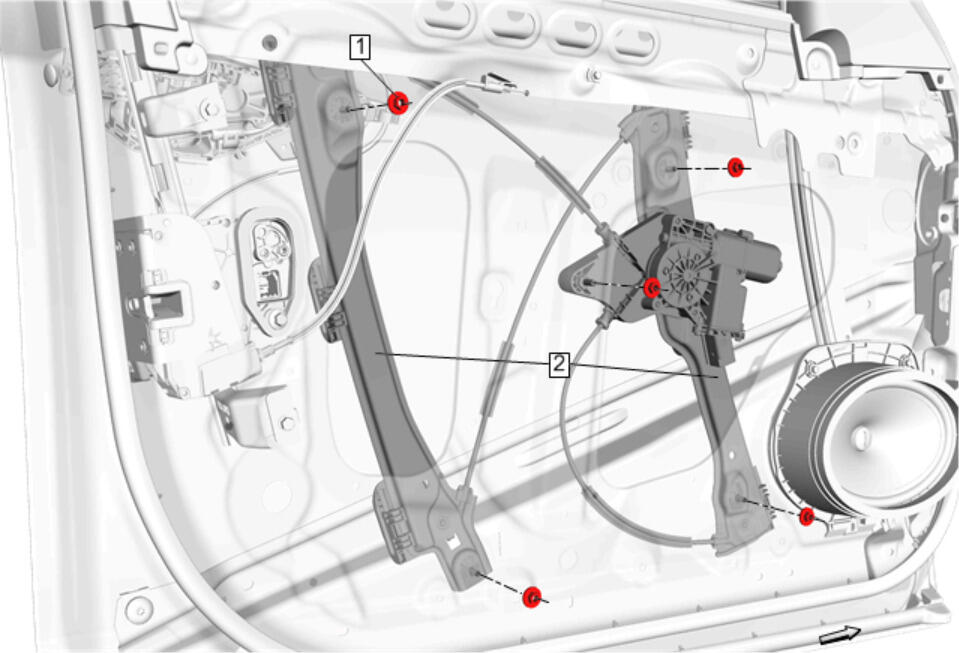

Front Side Door Window Regulator (2) - Install - Front Side Door Window Regulator Replacement
Connect the electrical connector.
Inspect the door latch and outside handle for proper operation before installing the door trim.
Remove the tape from the front side door window and frame.
