Door Lock Switch Replacement - Driver Side

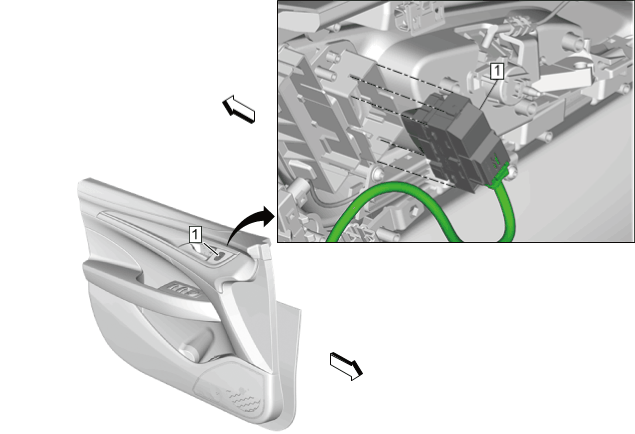

GM4324103

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Side Door Trim-Left Side - Remove - Front Side Door Trim Replacement

1

Door Lock Switch

Procedure

remove cloth inside door panel piece
Disconnect the electrical connector.
From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
