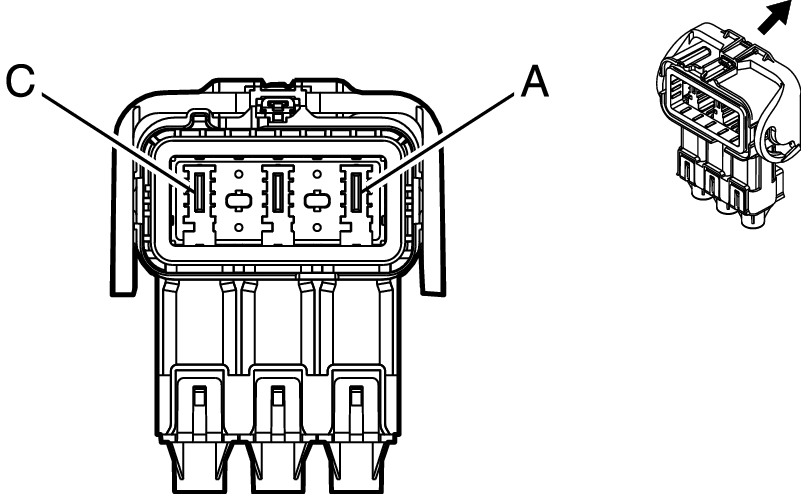

K59 Starter/Generator Control Module X3 (HP5)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 13598851
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Power Pack 1000 Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
16 |
OG |
3772 |
MGU Phase U Control |
I |
- |
| B |
16 |
OG |
3771 |
MGU Phase V Control |
I |
- |
| C |
16 |
OG |
3770 |
MGU Phase W Control |
I |
- |
