Dash Panel Inner Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Transmission Control Replacement
Front Floor Panel Carpet Replacement - Left Side
Front Floor Panel Carpet Replacement - Right Side
Brake and Accelerator Pedal Assembly Replacement
Heater and Air Conditioning Evaporator and Blower Module Removal and Installation

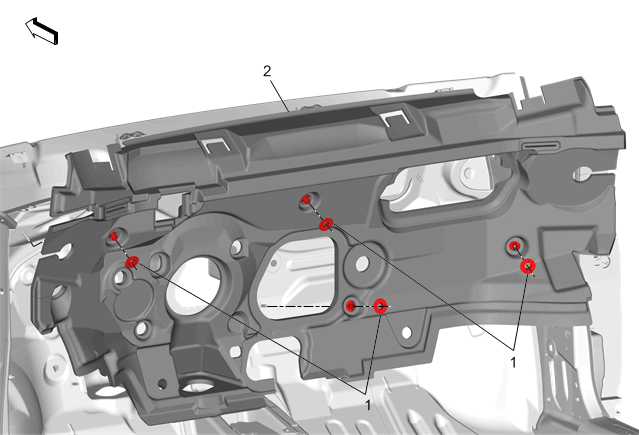

1
Dash Panel Inner Insulator Retainer [4x]
2
Dash Panel Inner Insulator
