Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement

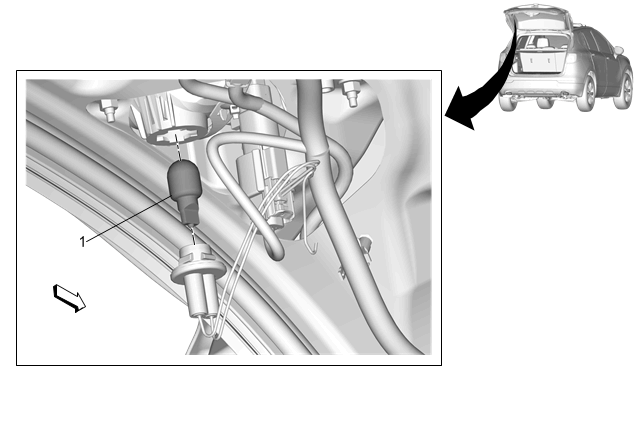

1	Backup Lamp Bulb Procedure Rotate the bulb socket a quarter turn counterclockwise and remove. Pull the bulb from the bulb socket.

Callout

Component Name

Preliminary Procedure
Liftgate Lower Trim Finish Panel Replacement

Backup Lamp Bulb

Procedure

Rotate the bulb socket a quarter turn counterclockwise and remove.
Pull the bulb from the bulb socket.
