Installation Procedure

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM3829279Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle (1) - Install

  2. GM3829227Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Baffle Retainer (1) - Install [4x]

  3. GM3829218Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Baffle Retainer (1) - Install [2x]

  4. GM3829222Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Baffle Retainer (1) - Install [4x]

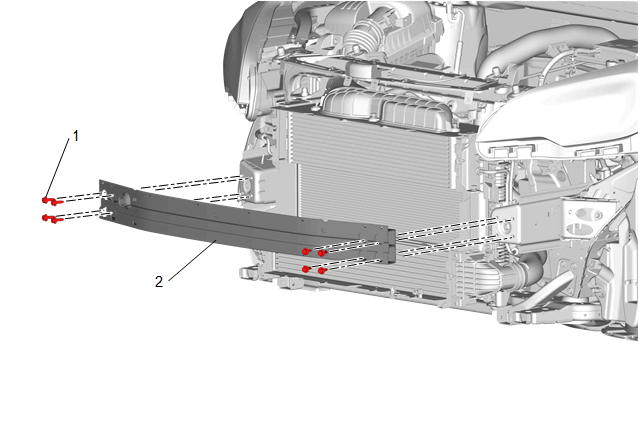

  5. GM3826813Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Impact Bar Replacement (2) - Install
