Airbag Front Seat Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

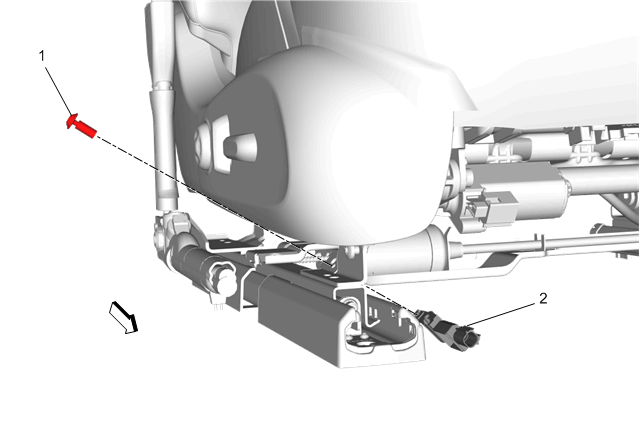

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures SIR Disabling and Enabling Front Seat Belt Anchor Plate Tensioner Cover Replacement
1	Airbag Front Seat Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 7.5 N.m (66 lb in)
2	Airbag Front Seat Position Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

WARNING:

Preliminary Procedures

Airbag Front Seat Position Sensor Fastener

CAUTION:

Tighten
7.5 N.m (66 lb in)

Airbag Front Seat Position Sensor
Procedure
Disconnect the electrical connector.
