Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
Ensure the steering wheel and the front wheels are in the straight ahead position.

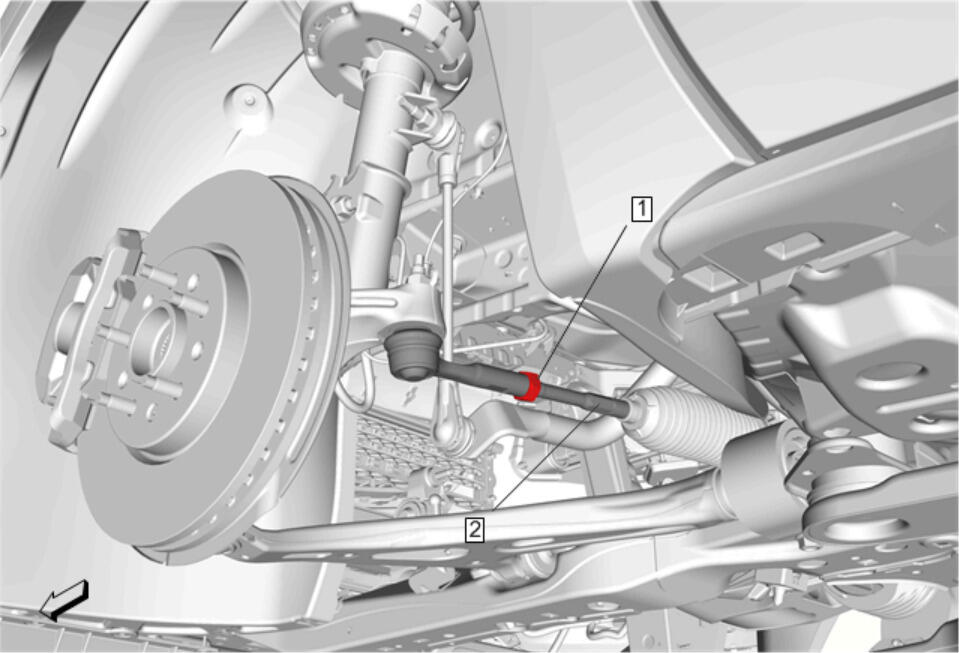

- Steering Linkage Inner Tie Rod Nut (1) - Loosen
- Rotate the inner tie rod (2) as necessary to achieve the required toe specification setting. Wheel Alignment Specifications
- Steering Linkage Inner Tie Rod Nut (1) - Tighten 75 N.m (55 lb ft)
- Check the toe setting after tightening.
- Re-adjust the toe setting if necessary.
- Center the steering angle sensor. Steering Wheel Angle Sensor Centering
CAUTION:
Refer to Fastener Caution .
