T12 Automatic Transmission Assembly
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

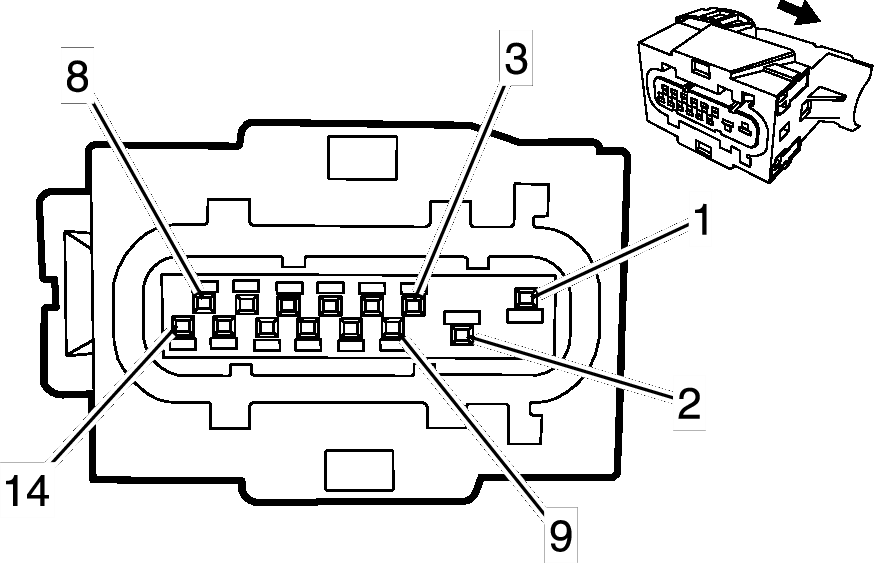

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13684090
- Service Connector: 13584426
- Description: 14-Way F 150, 280 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/GN |
2173 |
12V Regulated Supply Voltage 2 |
I |
- |
| 2 |
0.5 |
BK/WH |
151 |
Signal Ground |
I |
- |
| 3 |
0.5 |
WH/GY |
1786 |
Transmission Park/Neutral Signal 1 |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 7 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 8 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| 9 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.5 |
VT/GN |
439 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 13 |
0.5 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
I |
- |
| 14 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
