S45B Liftgate Control Switch - Interior (TC2)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

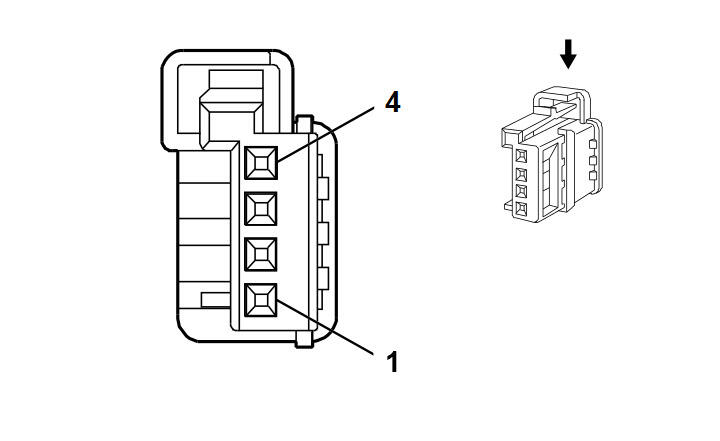

Connector Part Information
- Harness Type: Driver Door Trim
- OEM Connector: 13216377
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
1550 |
Ground |
I |
- |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 3 |
0.35 |
GN |
6112 |
Power Lift Gate On/Off Switch Signal |
I |
- |
| 4 |
0.35 |
GY/BK |
6113 |
Rear Lift Gate Open/Close Switch Signal |
I |
- |
