Q17D Fuel Injector 4
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

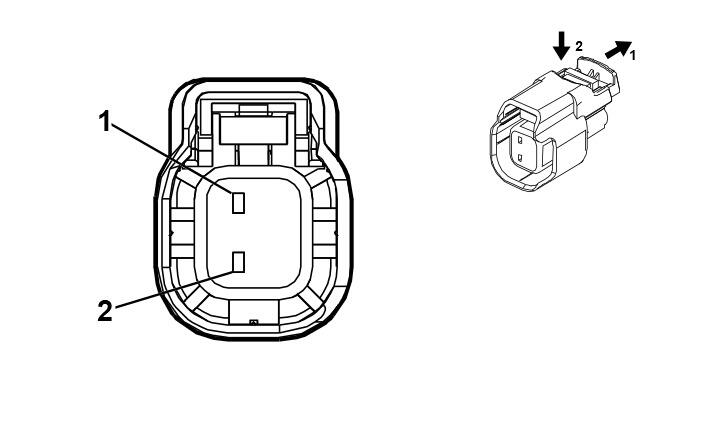

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13580239
- Service Connector: Not Available
- Description: 2-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GY/BU |
4804 |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 4 |
I |
- |
| 2 |
0.75 |
BU/WH |
4904 |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4 |
I |
- |
