M51D Seat Horizontal Motor - Driver
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

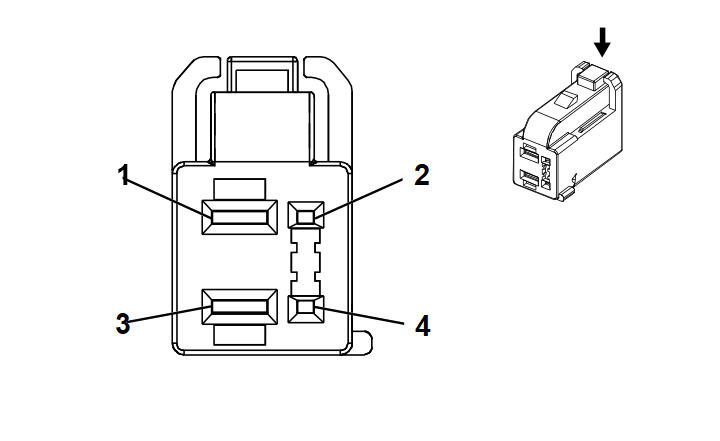

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13583828
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
GY/GN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
I |
- |
| 2 |
0.35 |
GN |
569 |
Memory Seat Horizontal Motor Position Sensor Signal |
I |
- |
| 3 |
2.0 |
YE/BU |
285 |
Driver Power Seat Horizontal Motor Forward Control |
I |
- |
| 4 |
0.35 |
WH/RD |
3298 |
Memory Sensor High Reference 2 |
I |
- |
