M17 Liftgate Motor Assembly X2 (TC2)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

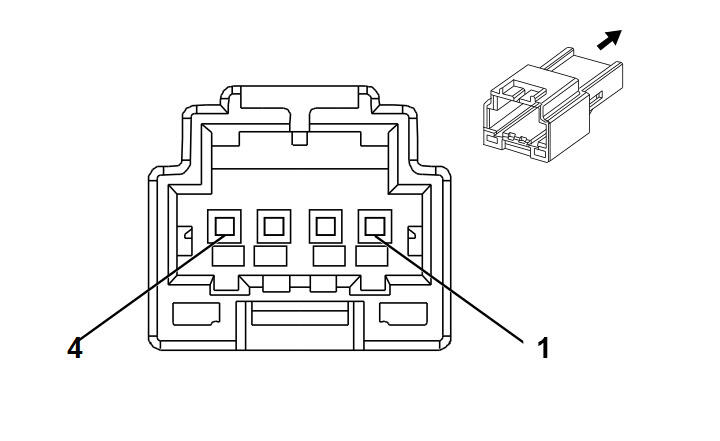

Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 13585683
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/RD |
5803 |
Lift Gate Position Sensor 5V Reference |
I |
- |
| 2 |
0.35 |
BK/GN |
5804 |
Lift Gate Position Sensor Low Reference |
I |
- |
| 3 |
0.35 |
BU/WH |
5805 |
Lift Gate Position Sensor Signal 1 |
I |
- |
| 4 |
0.35 |
BN/YE |
5806 |
Lift Gate Position Sensor Signal 2 |
I |
- |
