E13LA Headlamp Assembly - Left (T4A)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

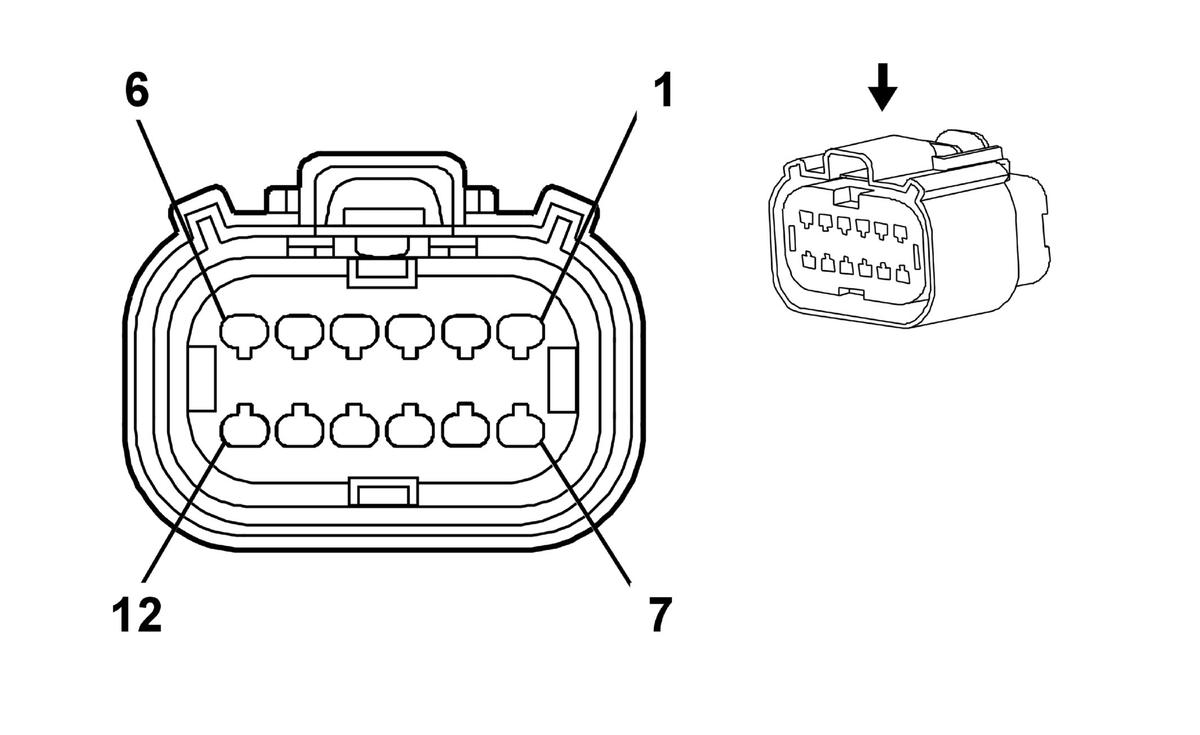

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | No Tool Required | No Tool Required | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | BK | 1150 | Ground | I | - |
| 2 | 1.5 | YE | 712 | Left Headlamp Low Beam Control | I | - |
| 3 | 0.5 | GN/BN | 7529 | Local Interconnect Network Serial Data Bus 7 | I | - |
| 4 | 0.75 | BN/YE | 189 | Headlamp Leveling Motor Control | I | - |
| 5 | 1.5 | BK | 1150 | Ground | I | - |
| 6 | 0.5 | WH | 711 | Left Headlamp High Beam Control | I | - |
| 7 | 0.5 | VT/GY | 709 | Left Park Lamp Control | I | - |
| 8 | 0.5 0.5 |
BU/WH GN/VT |
1314 1314 |
Left Front Turn Signal Lamp Control Left Front Turn Signal Lamp Control |
I I |
T4A T4F |
| 9 - 10 | - | - | - | Not Occupied | - | - |
| 11 | 1.5 | BK | 1150 | Ground | I | - |
| 12 | 0.5 | WH/YE | 1204 | Left Park Lamp Control | I | - |
