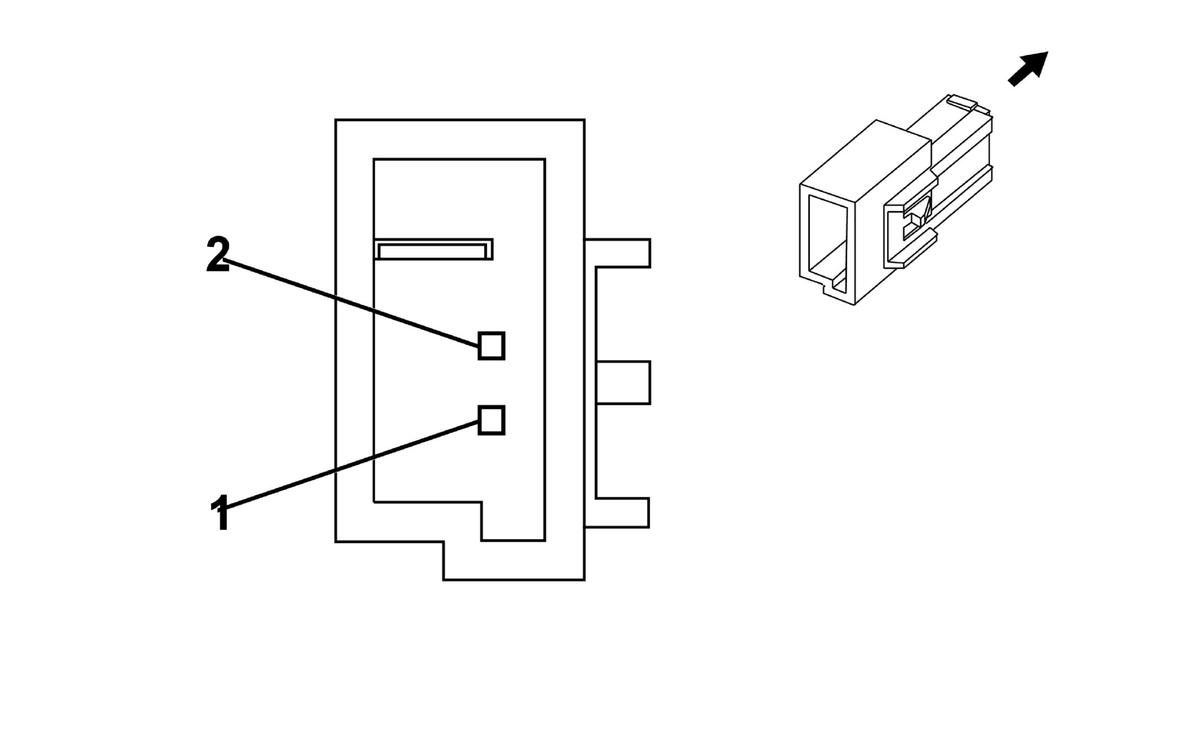

B77LF Radio Volume Compensator Interior Noise Microphone - Left Front
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 19153429
- Service Connector: 19299682
- Description: 2-Way M 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BK |
3008 |
Noise Reduction Microphone 1 Low Reference |
I |
- |
| 2 |
0.35 |
GN/BN |
3005 |
Noise Reduction Microphone 1 Signal |
I |
- |
