B47B Fuel Rail Pressure Sensor ()
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

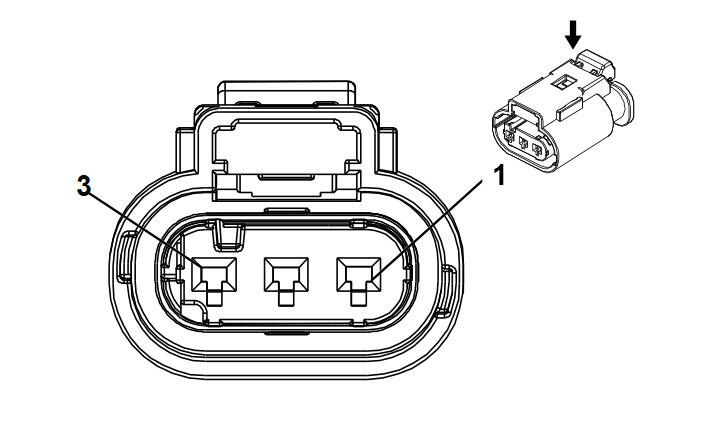

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13503573
- Service Connector: Not Available
- Description: 3-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/GN |
2919 |
Fuel Rail Pressure Sensor Low Reference |
I |
- |
| 2 |
0.5 |
BU/WH |
2918 |
Fuel Rail Pressure Sensor Signal |
I |
- |
| 3 |
0.5 |
BN/RD |
2917 |
Fuel Rail Pressure Sensor 5V Reference |
I |
- |
