B26 Crankshaft Position Sensor
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

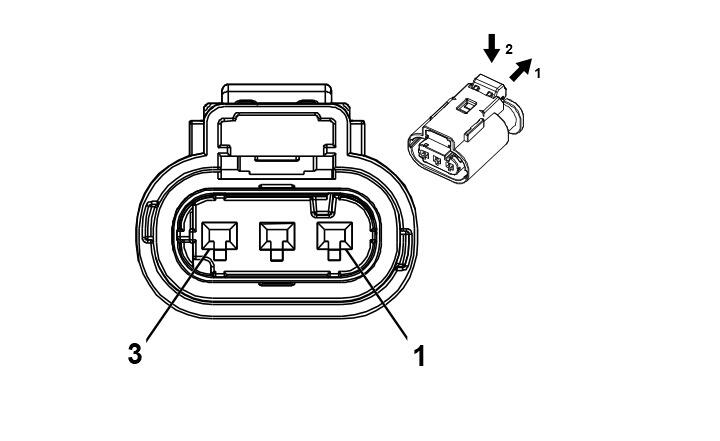

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13503570
- Service Connector: 19299690
- Description: 3-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BU |
6270 |
Crankshaft 60X Sensor 5V Reference |
I |
- |
| 2 |
0.5 |
BK/VT |
6272 |
Crankshaft 60X Sensor Low Reference |
I |
- |
| 3 |
0.5 |
GN |
6271 |
Crankshaft 60X Sensor Signal |
I |
- |
