B160 Windshield Temperature and Inside Moisture Sensor (ASV-CE1)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

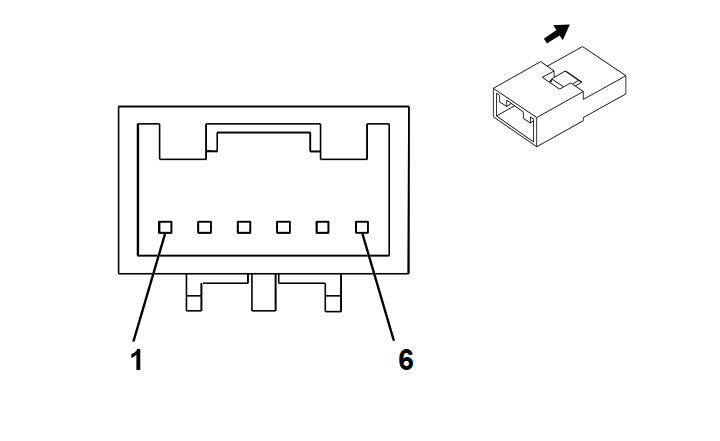

Connector Part Information
- Harness Type: Body
- OEM Connector: 19153436
- Service Connector: 19299681
- Description: 6-Way M 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE/RD |
597 |
5V Reference |
I |
-CE1 |
| 2 |
0.35 |
GY/BU |
7564 |
Humidity Sensor Signal |
I |
-CE1 |
| 3 |
0.35 |
BK/BU |
7566 |
Humidity/Windscreen Temp Sensor Low Reference |
I |
-CE1 |
| 4 |
0.35 |
GY/GN |
7565 |
Windscreen Temp Sensor Signal |
I |
-CE1 |
| 5 |
0.35 |
YE/BU |
3197 |
Humidity Temperature Sensor Signal |
I |
-CE1 |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
