B111B Turbocharger Boost/Intake Air Temperature Sensor
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

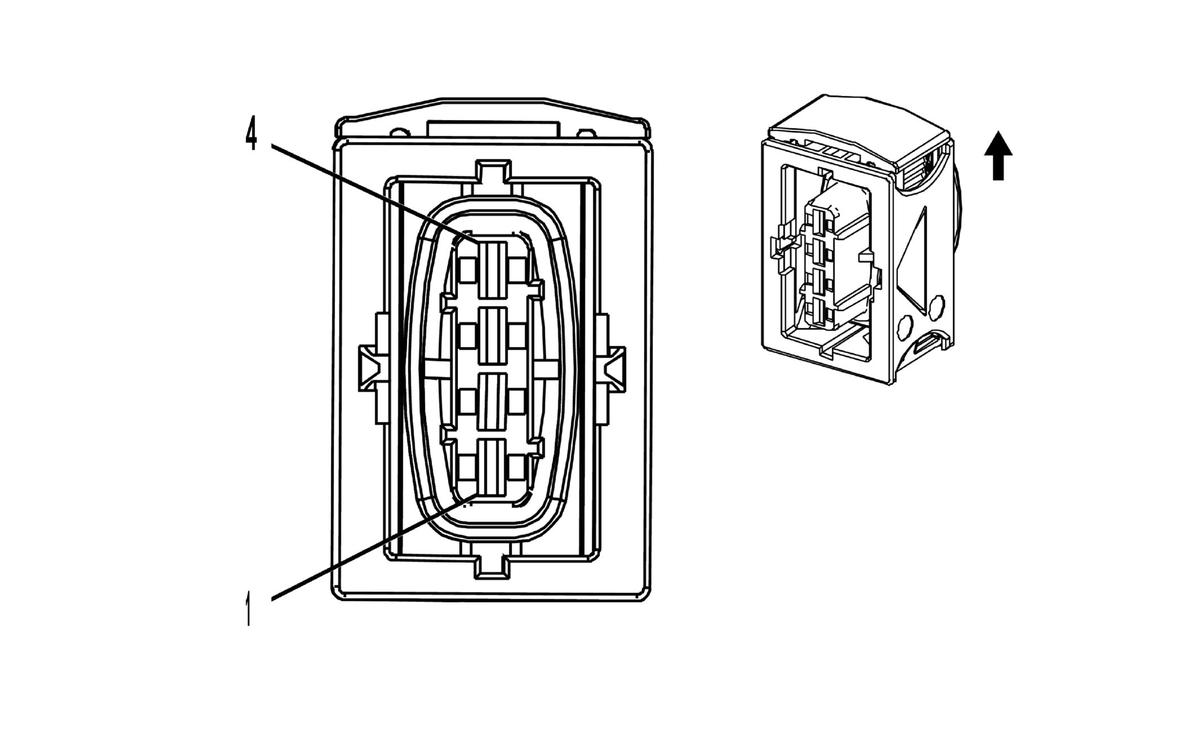

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13140565
- Service Connector: 13384331
- Description: 4-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/VT |
7332 |
Pre Throttle Air Temp and Press (TMAP) Low Reference |
I |
LTG |
| 2 |
0.5 |
BN |
7348 |
Induction Air Temperature Sensor 2 Signal |
I |
LTG |
| 3 |
0.5 |
GY/RD |
7331 |
Pre Throttle Air Temp and Press (TMAP) 5V Reference |
I |
LTG |
| 4 |
0.5 |
VT/BU |
7330 |
Pre Throttle Air Temp and Press (TMAP) Air Pressure Signal |
I |
LTG |
