A9A Outside Rearview Mirror - Driver
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

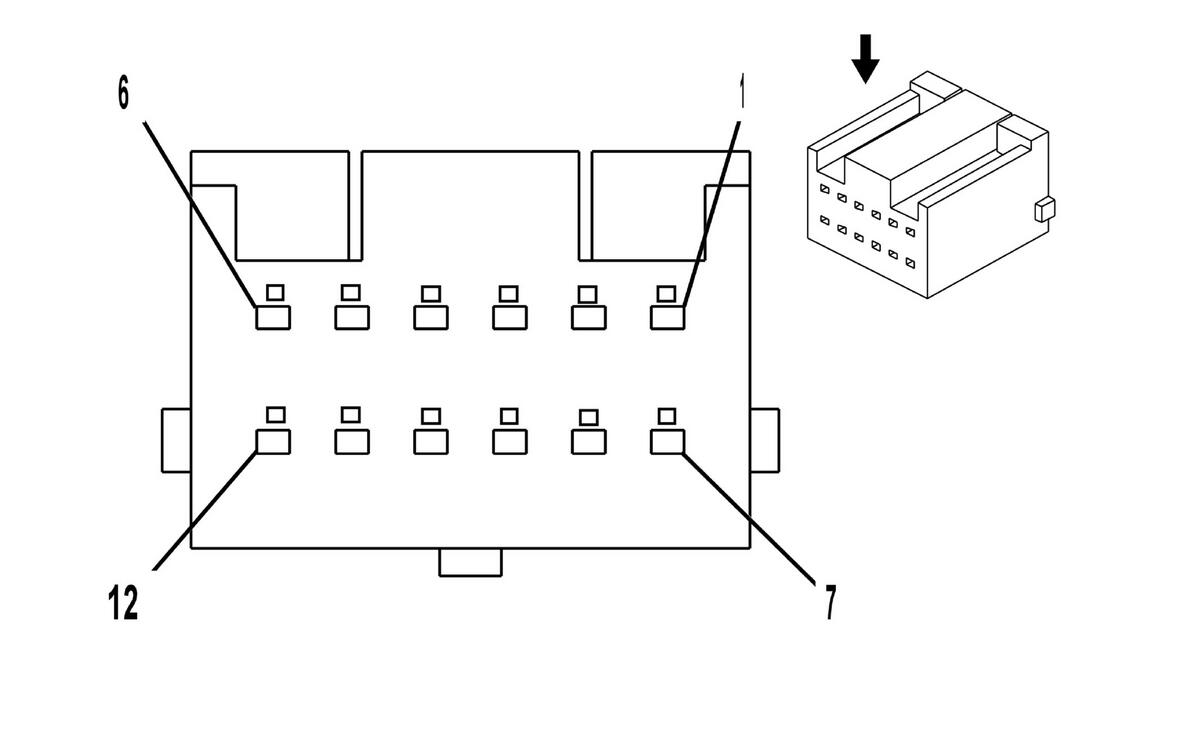

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | No Tool Required | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 0.35 |
GN/WH GY/YE |
6159 5853 |
Outside Left Mirror Horizontal Position Control Driver Side Object Detection LED Signal 1 |
I I |
A45 UKC |
| 2 | 0.35 0.35 |
BU/WH BN/WH |
6160 1314 |
Outside Left Mirror Vertical Position Control Left Front Turn Signal Lamp Control |
I I |
A45 DWL |
| 3 | 0.35 | BU/RD | 672 | Left Outside Rear View Mirror Position Sensor 5V Reference | I | A45 |
| 4 | 0.35 | BK/BN | 673 | Left Outside Rear View Mirror Position Sensor Low Reference | I | A45 |
| 5 | 0.35 | GY/BK | 7197 | Outside Left Mirror Drive Motor Ground | I | A45 |
| 6 | 0.35 | GN/BU | 784 | Left Mirror Vertical Position Sensor Signal | I | A45 |
| 7 | 0.35 | VT/GY | 786 | Left Mirror Horizontal Position Sensor Signal | I | A45 |
| 8 | 0.5 | BK | 2267 | Mirror Heating Element Control | I | - |
| 9 | 0.35 0.35 |
VT/BU GN/WH |
3390 1690 |
Driver Mirror Motor Up (+) Down (-) Control Automatic Day/Night Mirror Signal |
I I |
-A45 DWL |
| 10 | 0.35 0.35 |
BN/BK RD/BN |
3389 1691 |
Driver Mirror Motor Right (+) Left (-) Control Automatic Day/Night Mirror Low Reference |
I I |
-A45 DWL |
| 11 | 0.5 | BK | 1550 | Ground | I | UKC |
| 12 | 0.35 | YE/BN | 3391 | Driver Mirror Motor Common Control | I | -A45 |
