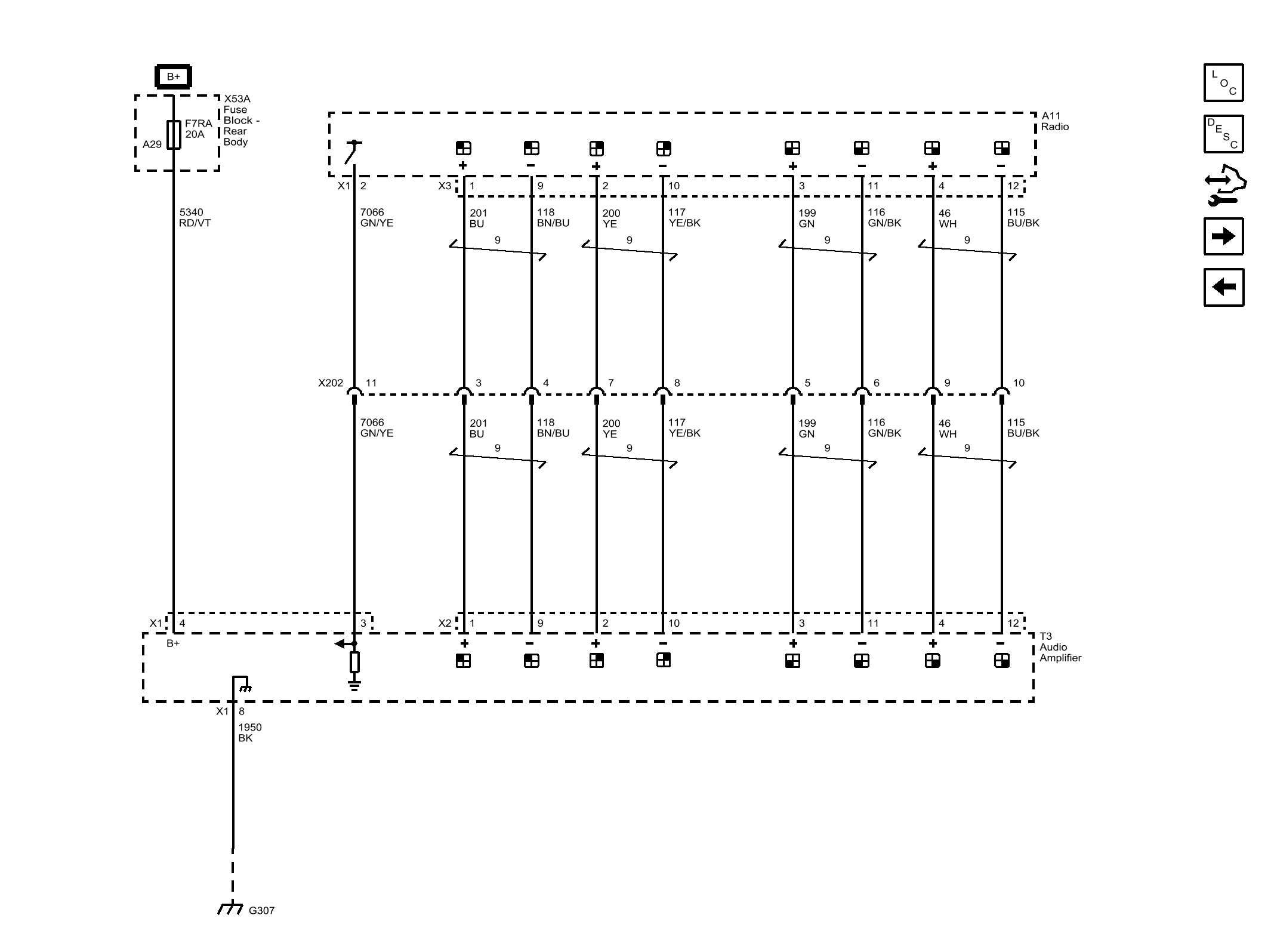

Radio to Amplifier (UZ6)

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
GM4712391Courtesy of GENERAL MOTORS COMPANY
