Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

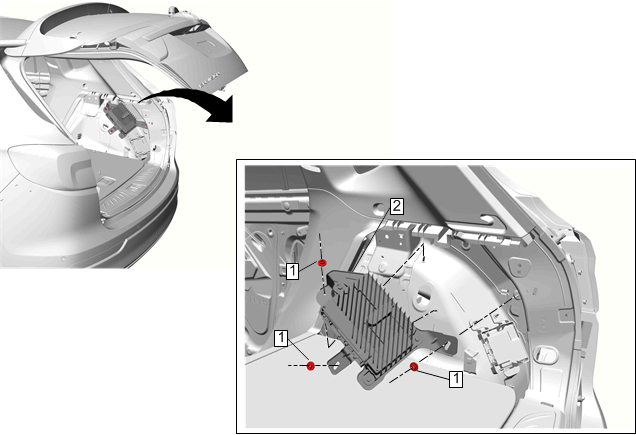

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement
1	Radio Speaker Amplifier Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement

Radio Speaker Amplifier Nut [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connector.
Control Module References for programming and setup information, if required.
