Radio Bracket Replacement
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

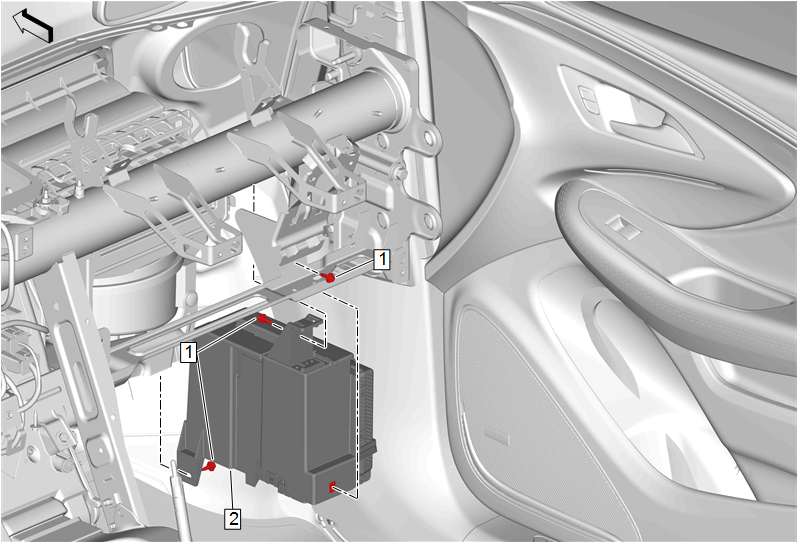

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Center Air Outlet Duct Replacement |
|
| 1 | Radio Bracket Fastener [3x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Bracket Procedure
|
