Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

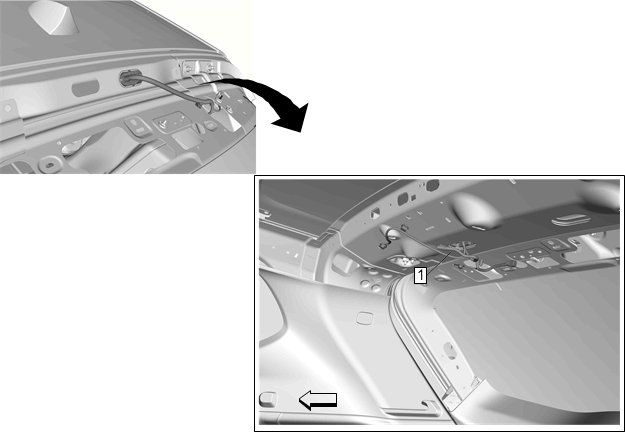

GM3931511Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Liftgate Upper Trim Finish Panel Replacement
  2. Lower the rear of the headliner Headlining Trim Panel Replacement
1 Radio Antenna Cable

Procedure

  1. Disconnect the cable from the radio antenna amplifier.
  2. Disconnect the cable from radio and mobile telephone antenna cable.
  3. Disconnect the clips on the cable from several places on the roof panel.
  4. Pull cable with grommet through roof panel opening.
