High Frequency Antenna Replacement
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

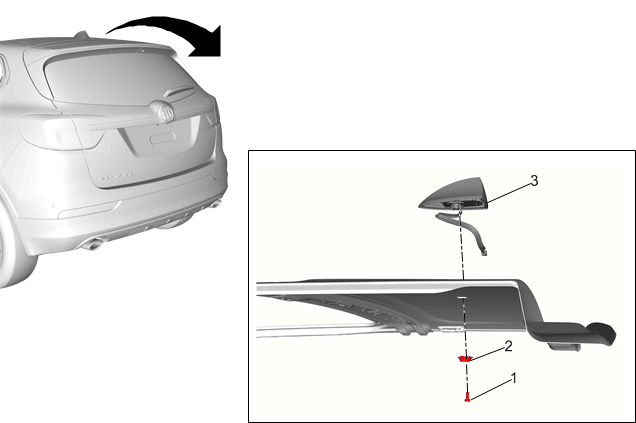

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the rear of the headlining trim panel to access the fastener Headlining Trim Panel Replacement |
|
| 1 | High Frequency Antenna Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | High Frequency Antenna Retainer |
| 3 | High Frequency Antenna Procedure Disconnect the electrical connector.
NOTE:
Inspect the area of the roof that the antenna will be located for any bare metal or paint chips and repair as necessary to avoid antenna reception issues. |
