Roof Console Replacement

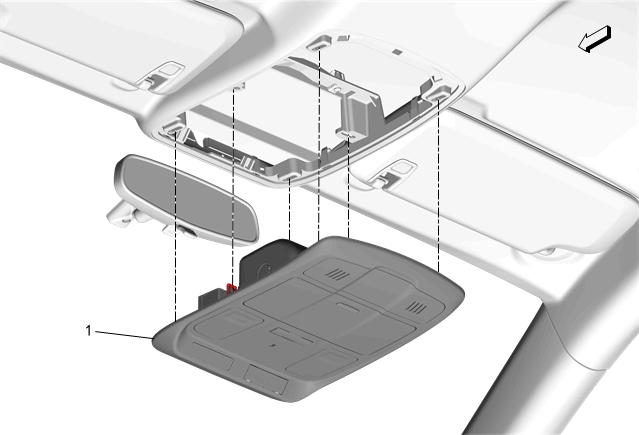

GM3916442Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Roof Console

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
