Installation Procedure

  1. Instrument Panel Center Air Outlet Duct Replacement (Without KEM) , or Instrument Panel Center Air Outlet Duct Replacement (With KEM) - Install

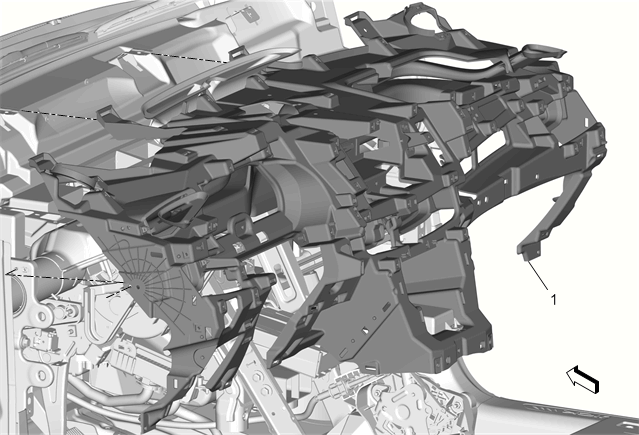

  2. GM3923203Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument carrier in the vehicle. (1)

  3. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.

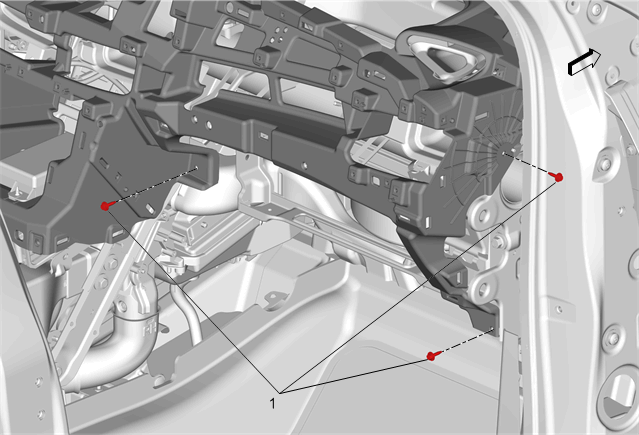

  4. GM3923200Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Carrier Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

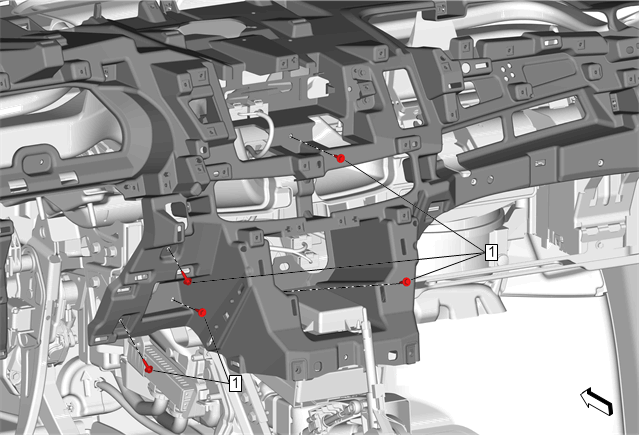

  5. GM3923198Courtesy of GENERAL MOTORS COMPANY

    Instrument Carrier Bolt (1) - Install and tighten [5x] 2.5 N.m (22 lb in)

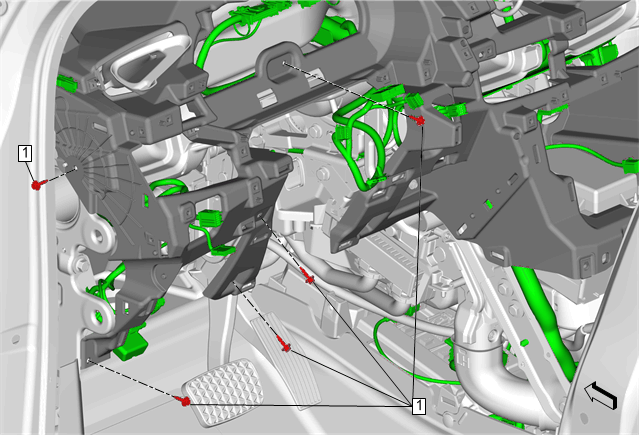

  6. GM3923196Courtesy of GENERAL MOTORS COMPANY

    Instrument Carrier Bolt (1) - Install and tighten [5x] 2.5 N.m (22 lb in)

  7. GM3921387Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Battery Replacement (2) - Install

  8. GM4623144Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the components in the preliminary procedures. Those procedures will be covered later.

    Communication Interface Module Bracket Replacement (1) - Install

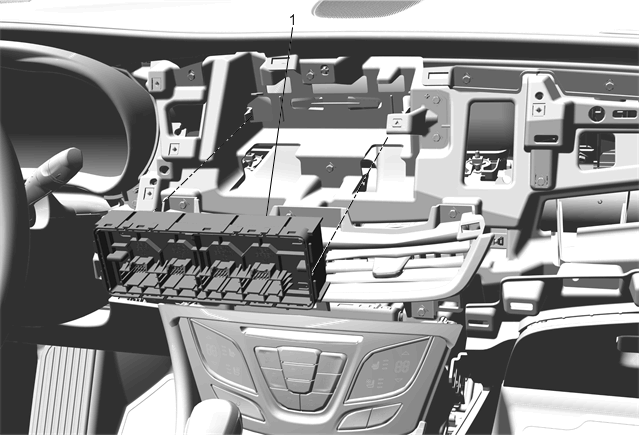

  9. GM3822126Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel trim plate. It will be installed with the instrument panel upper trim panel procedure.

    Heater and Air Conditioning Remote Control Replacement (1) - Install

  10. GM4509687Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Bracket Replacement (2) - Install

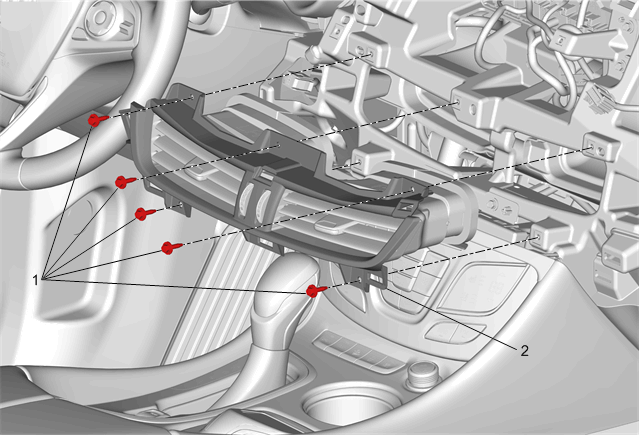

  11. GM3775123Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel trim pad. It will be installed with the instrument panel compartment procedure.

    Instrument Panel Outer Air Outlet Bezel Replacement (Center) (2) - Install

  12. GM3824794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel extension. It will be installed with the instrument panel upper trim panel procedure.

    Radio Front Speaker Replacement (2) - Install [2x]

  13. GM3909697Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster Replacement (2) - Install

  14. GM3901981Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Replacement  (3) - Install

  15. GM3824801Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Replacement (2) - Install

  16. GM3824797Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille Replacement (1) - Install

  17. GM3858892Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel pad. It will be installed with the instrument panel compartment procedure. Do not install the steering column upper trim cover. It will be installed with the steering column procedure.

    Instrument Panel Cluster Trim Plate Replacement  (2) - Install

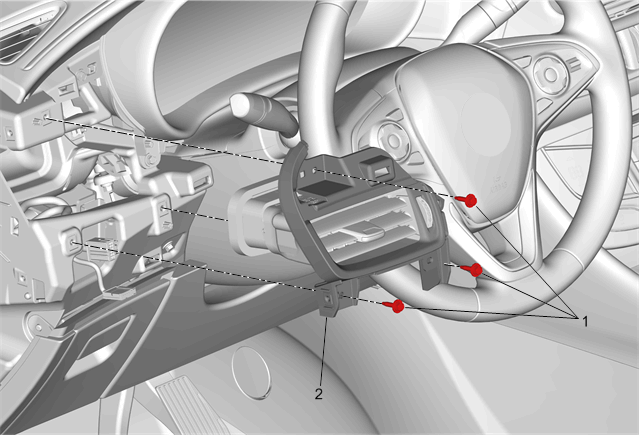

  18. GM3775370Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Bezel Replacement - Left Side (2) - Install

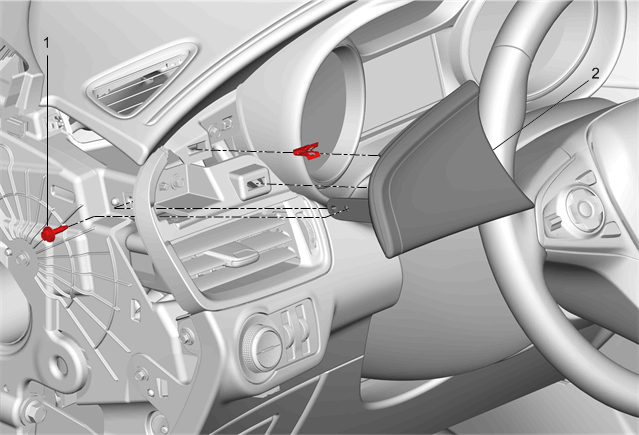

  19. GM3762654Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel outer trim cover. It will be installed with the instrument panel knee bolster procedure.

    Instrument Panel Lower Trim Plate Applique Replacement - Left Side  (2) - Install

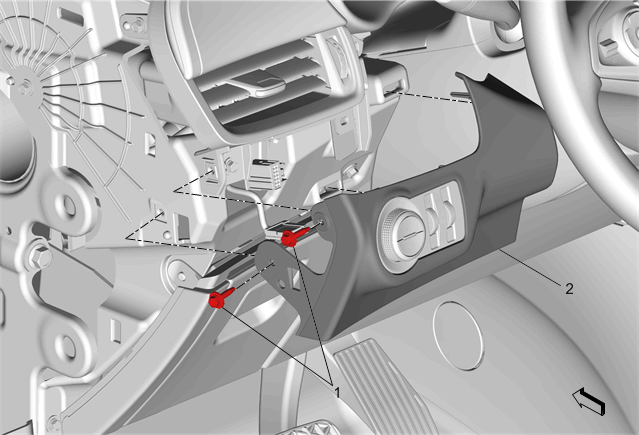

  20. GM3767032Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel outer trim cover. It will be installed with the instrument panel knee bolster procedure.

    Instrument Panel Trim Plate Applique Replacement  (2) - Install

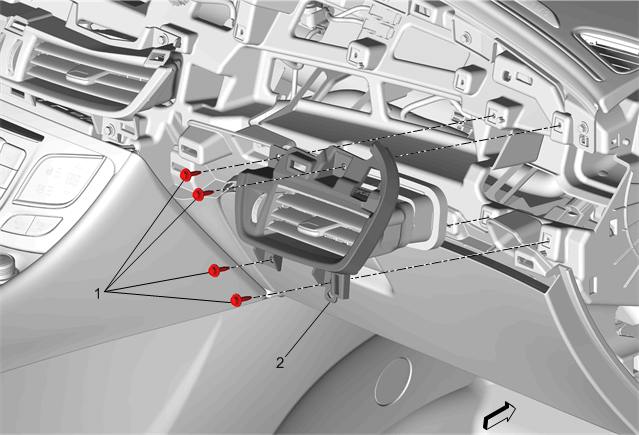

  21. GM3775114Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel pad. It will be installed with the instrument panel compartment procedure.

    Instrument Panel Outer Air Outlet Bezel Replacement - Right Side (2) - Install

  22. GM3766574Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the right instrument panel lower trim plate applique. It will be installed with the instrument panel compartment procedure.

    Instrument Panel Trim Plate Replacement  (2) - Install

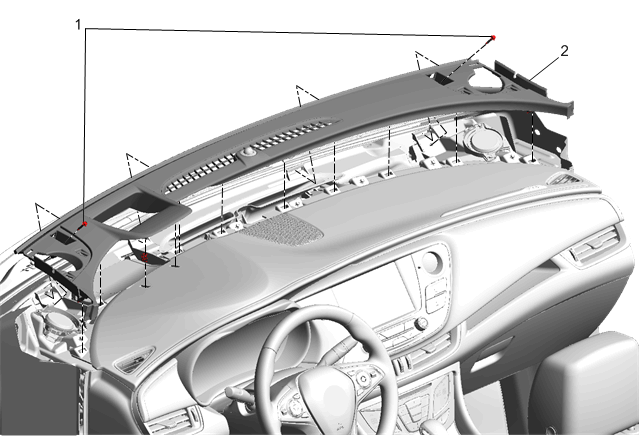

  23. GM3973918Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension Replacement (UEU) , or Instrument Panel Extension Replacement (UV6)  (2) - Install

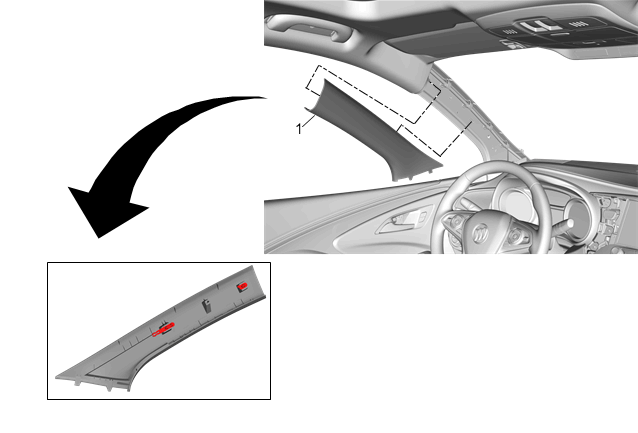

  24. GM3920234Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Replacement (1) - Install

  25. GM3824793Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Grille Replacement (1) - Install

  26. GM3816555Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the right front floor console applique. It will be installed with the front floor console procedure.

    Instrument Panel Compartment Replacement  (2) - Install

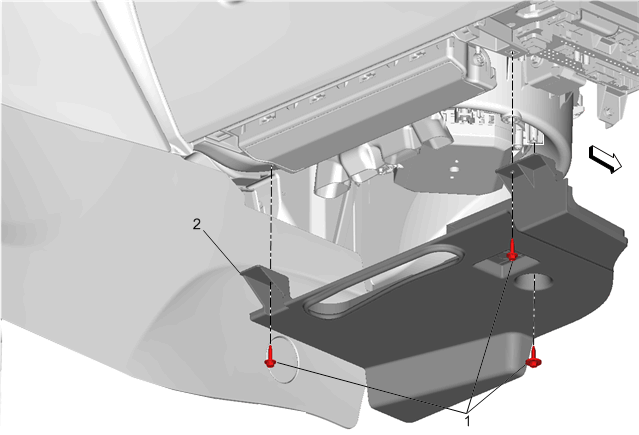

  27. GM3970695Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Replacement - Right Side  (2) - Install

  28. GM3768253Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Replacement  (2) - Install

  29. GM3767480Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the front floor console trim plate. It will be installed with the front floor console procedure.

    Instrument Panel Lower Center Trim Plate Applique Replacement  (1) - Install

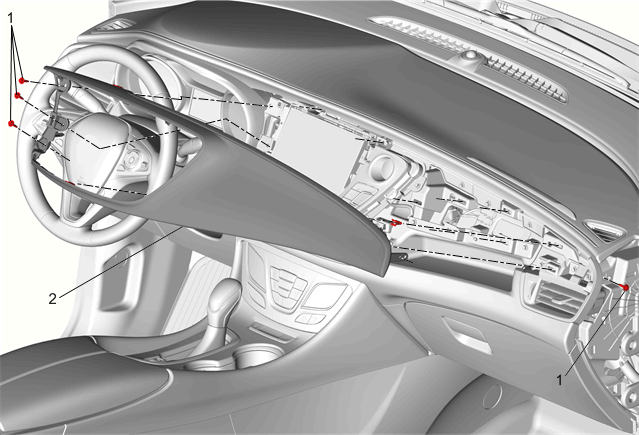

  30. GM3766068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Plate Applique Replacement - Right Side  (2) - Install

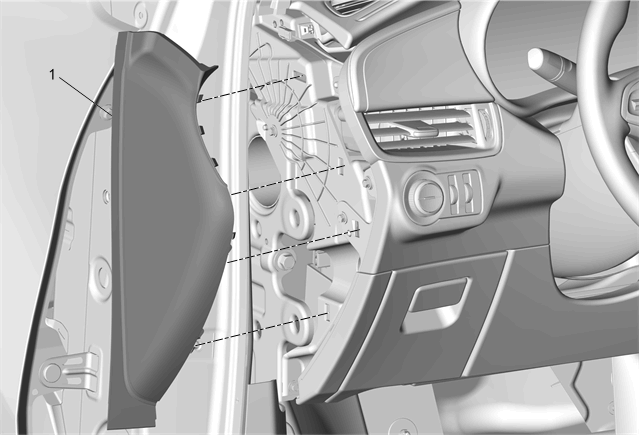

  31. GM3762646Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover Replacement  @ Right Side (1) - Install

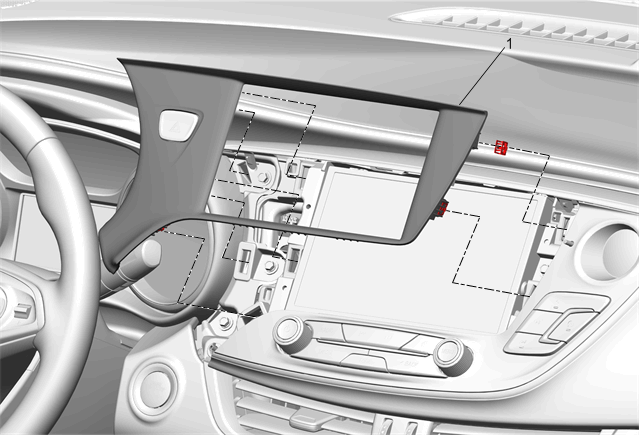

  32. GM3765402Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique Replacement (4.2 inch Display) , or Instrument Panel Center Trim Plate Applique Replacement (8 inch Display)  (1) - Install

  33. GM3898444Courtesy of GENERAL MOTORS COMPANY

    Steering Column Replacement (1) - Install

  34. GM3924758Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft Replacement @ Intermediate Steering Shaft Upper Bolt (1) - Install

  35. GM3821422Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the left instrument panel lower trim panel insulator. It will be installed with the instrument panel knee bolster preliminary procedure.

    Floor Front Air Outlet Duct Replacement - Left Side (2) - Install

  36. GM3906064Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the left front floor console applique. It will be installed with the front floor console preliminary procedure.

    Instrument Panel Knee Bolster Replacement  (2) - Install

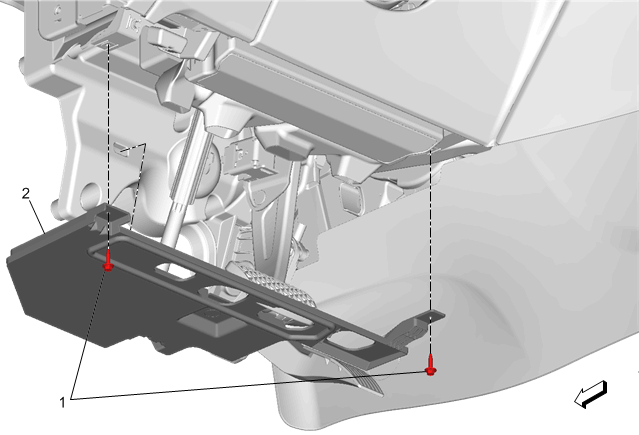

  37. GM3970684Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Replacement - Left Side  (2) - Install

  38. GM3762646Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover Replacement  @ Left Side (1) - Install

  39. GM3909980Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover Replacement (2) - Install

  40. GM4622444Courtesy of GENERAL MOTORS COMPANY

    Steering Column Upper Trim Cover Replacement (1) - Install

  41. Enable the SIR System. SIR Disabling and Enabling
  42. GM3914415Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Replacement  (3) - Install

  43. GM3808304Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel Replacement - Left Side  (3) - Install

  44. GM3813200Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel Replacement - Right Side  (3) - Install

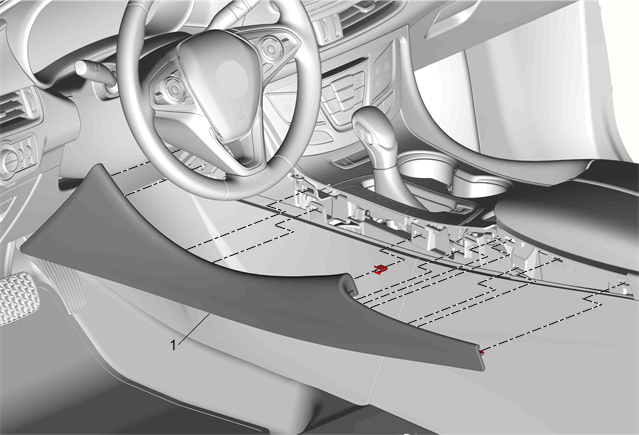

  45. GM3794748Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique Replacement - Left Side  (1) - Install

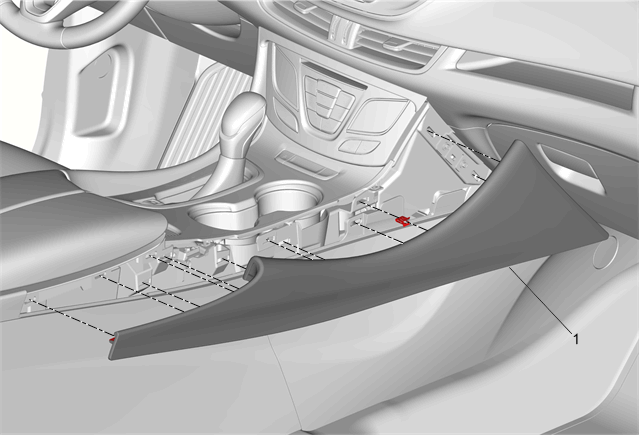

  46. GM3795840Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique Replacement - Right Side  (1) - Install

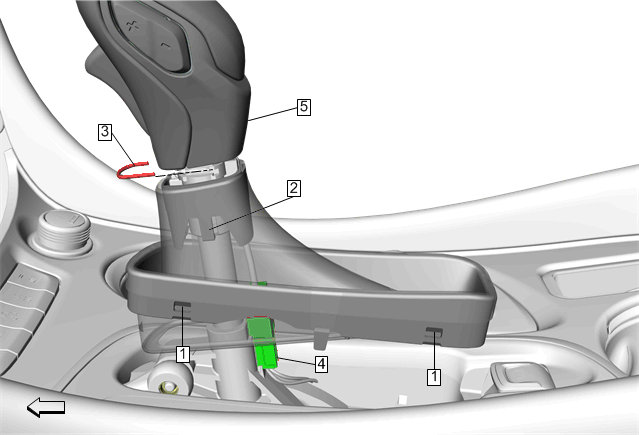

  47. GM3954101Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Lever Knob Replacement (5) - Install
