Front Floor Console Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

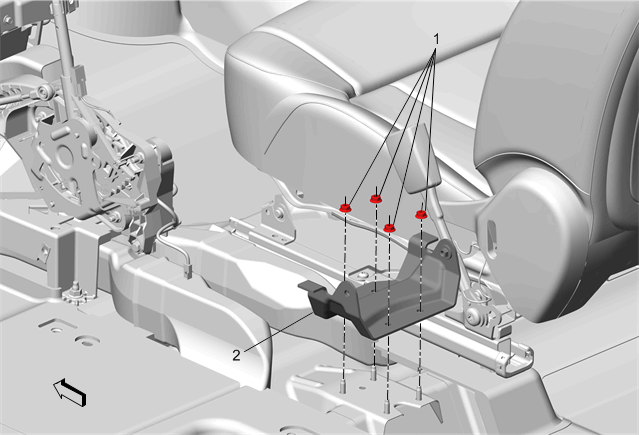

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement
1	Front Floor Console Nut [4x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Floor Console Bracket
