Front Floor Console Armrest Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Side Trim Panel Replacement - Left Side Front Floor Console Side Trim Panel Replacement - Right Side Front Floor Console Rear Air Duct Replacement (Front) , or Front Floor Console Rear Air Duct Replacement (Rear) , or Front Floor Console Rear Air Duct Replacement (CJ4 Rear) Refer to Front Floor Console Trim Plate Replacement. { If equipped } Audio Player and USB and Auxiliary In and Memory Card Receptacle Replacement { If equipped } Accessory Power Receptacle Replacement (12 Volt) , or Accessory Power Receptacle Replacement (230 Volt)

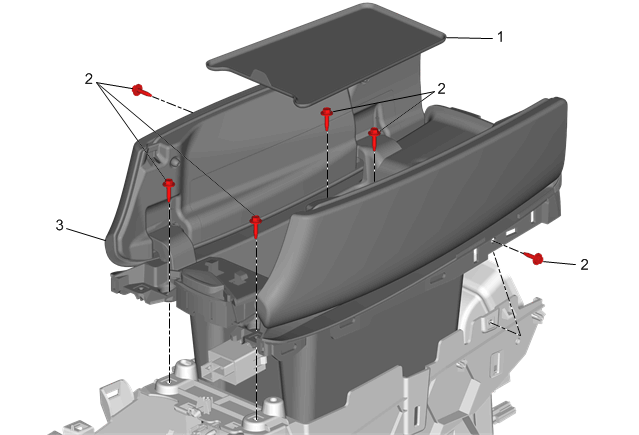

1	Front Floor Console Compartment Liner
2	Front Floor Console Armrest Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Floor Console Armrest Procedure Release the plastic retaining tabs securing the armrest to the rear of the floor console.
