Rear Side Door Window Channel Rear Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

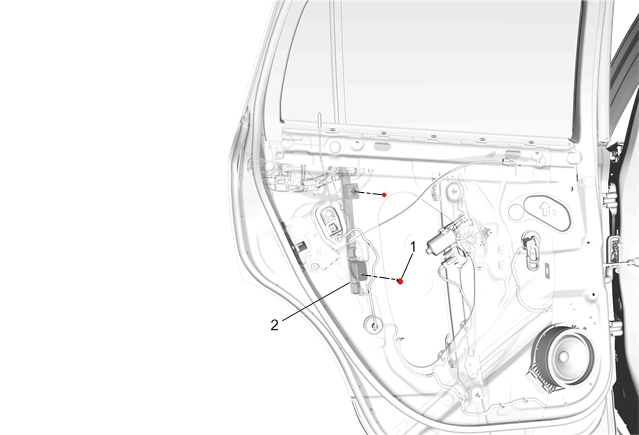

Callout	Component Name
Preliminary Procedures Rear Side Door Armrest Pull Cup Bracket Replacement Remove the water deflector.
1	Rear Side Door Window Channel Rear Retainer Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Side Door Window Channel Rear Retainer

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Channel Rear Retainer Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Side Door Window Channel Rear Retainer
