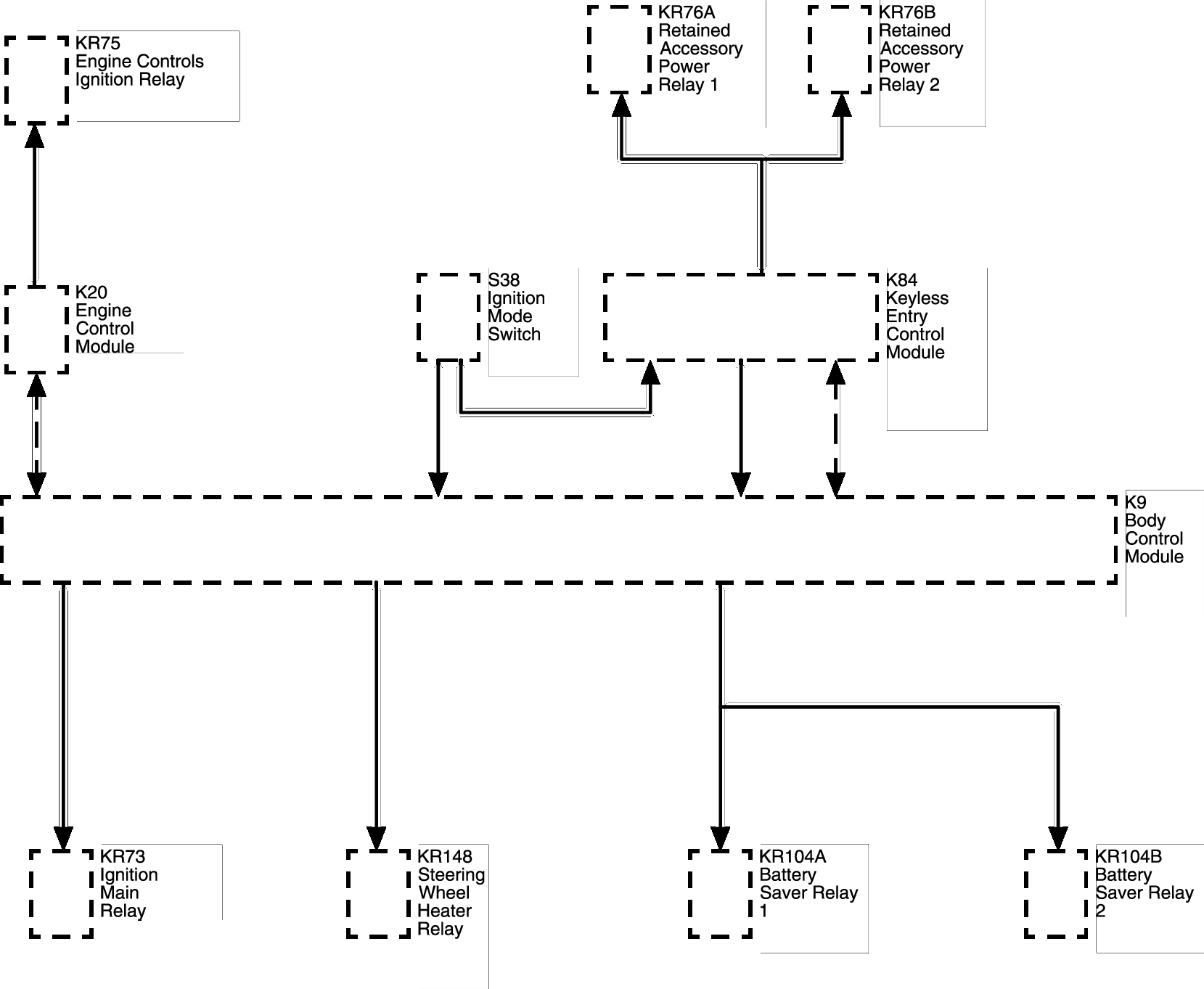

Power Mode Description and Operation: Notes
| Callout | Component Name |
|---|---|
| KR75 | KR75 Engine Controls Ignition Relay |
| K20 | K20 Engine Control Module |
| K9 | K9 Body Control Module |
| KR76A | KR76A Retained Accessory Power Relay 1 |
| KR76B | KR76B Retained Accessory Power Relay 2 |
| S38 | S38 Ignition Mode Switch |
| K84 | K84 Keyless Entry Control Module |
| KR73 | KR73 Ignition Main Relay |
| KR148 | KR148 Steering Wheel Heater Relay |
| KR104A | KR104A Battery Saver Relay 1 |
| KR104B | KR104B Battery Saver Relay 2 |
