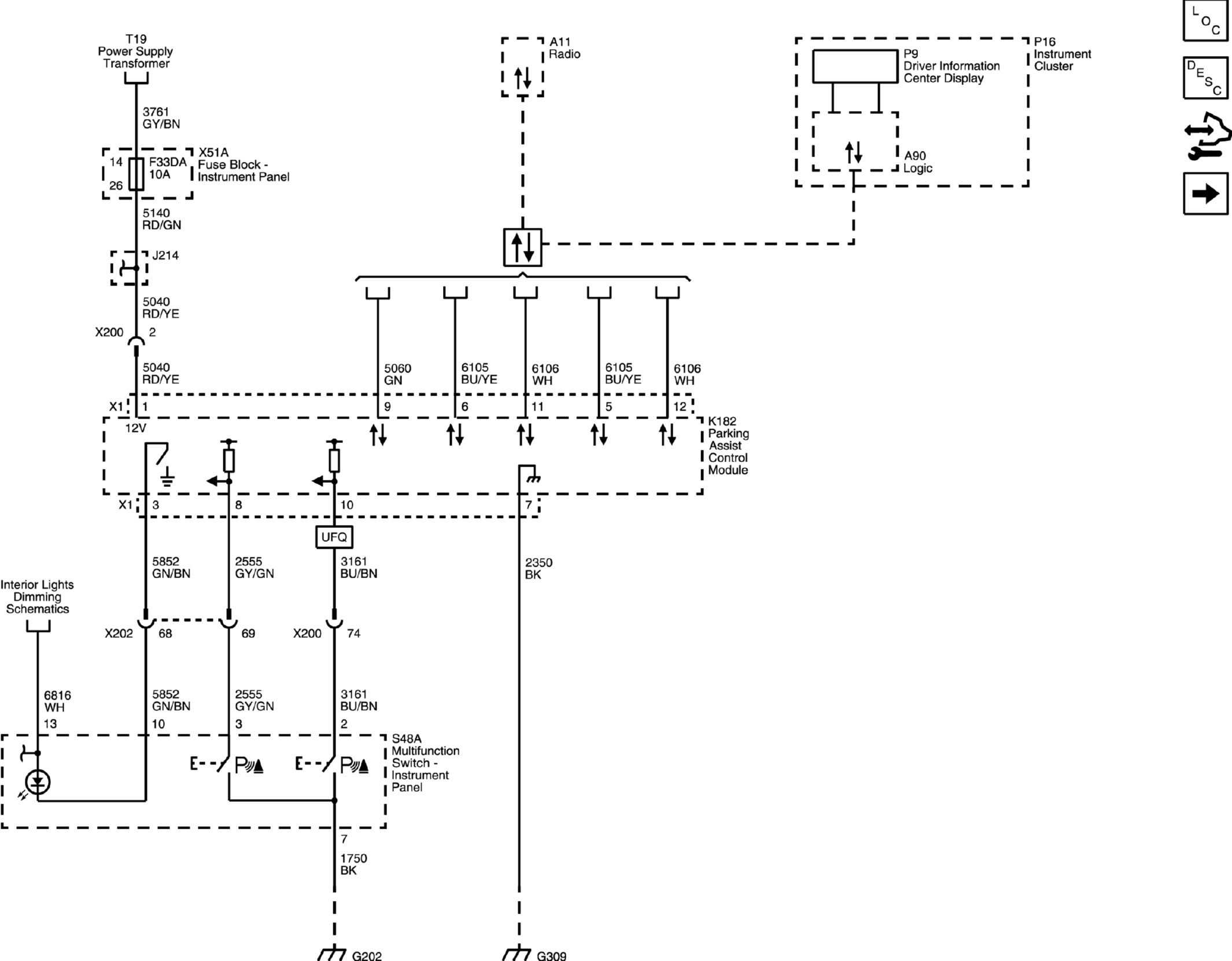

Park Assist - Module Power, Ground, Serial Data, and Controls

GM4850920

Courtesy of GENERAL MOTORS COMPANY
