Installation Procedure

  1. Install the rear mount bushing to the transmission adapter. Refer to Transfer Case Adapter Assemble (MHB) .

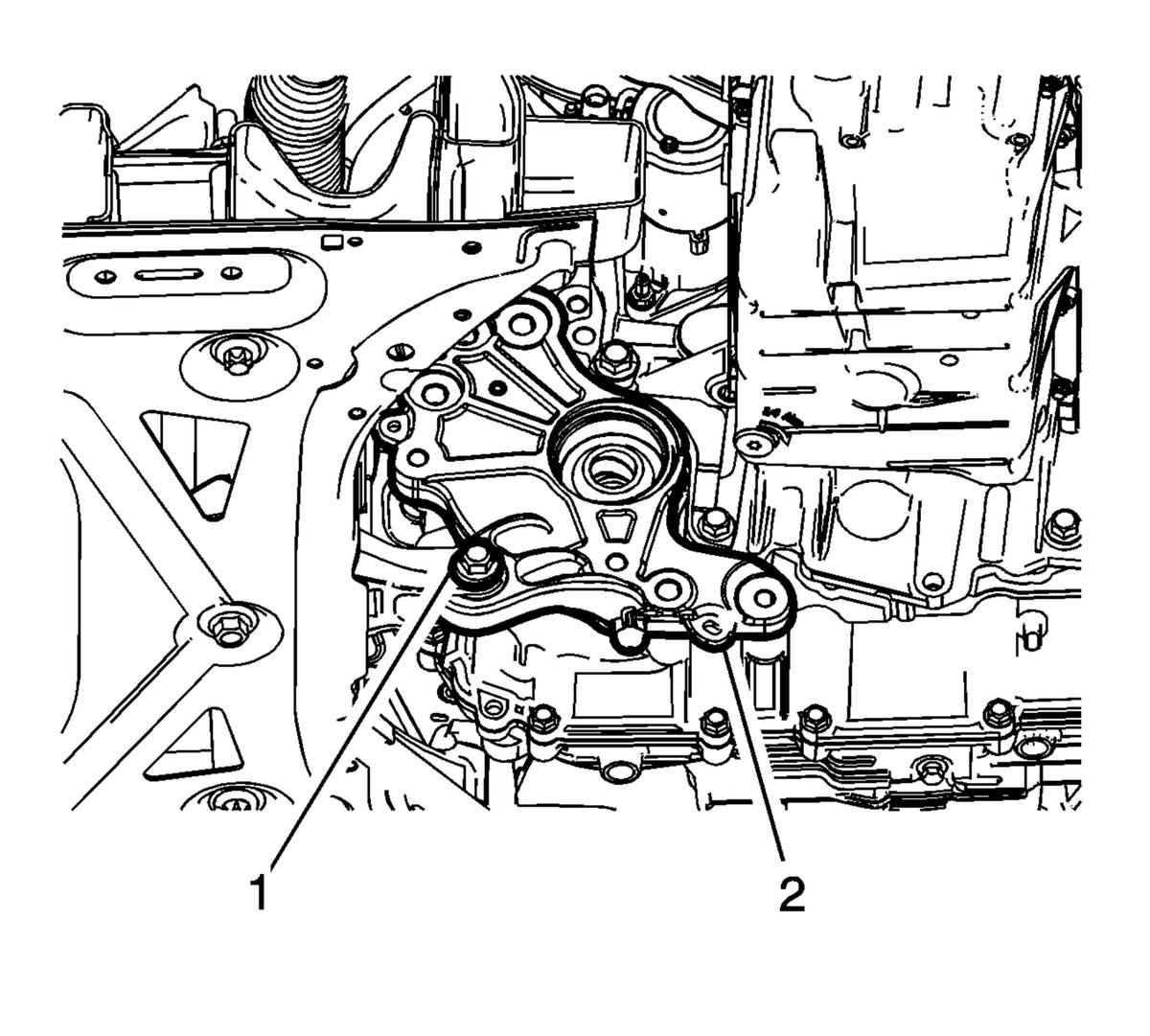

  2. GM2759935Courtesy of GENERAL MOTORS COMPANY

    Install the transmission adapter (2) to the transmission.

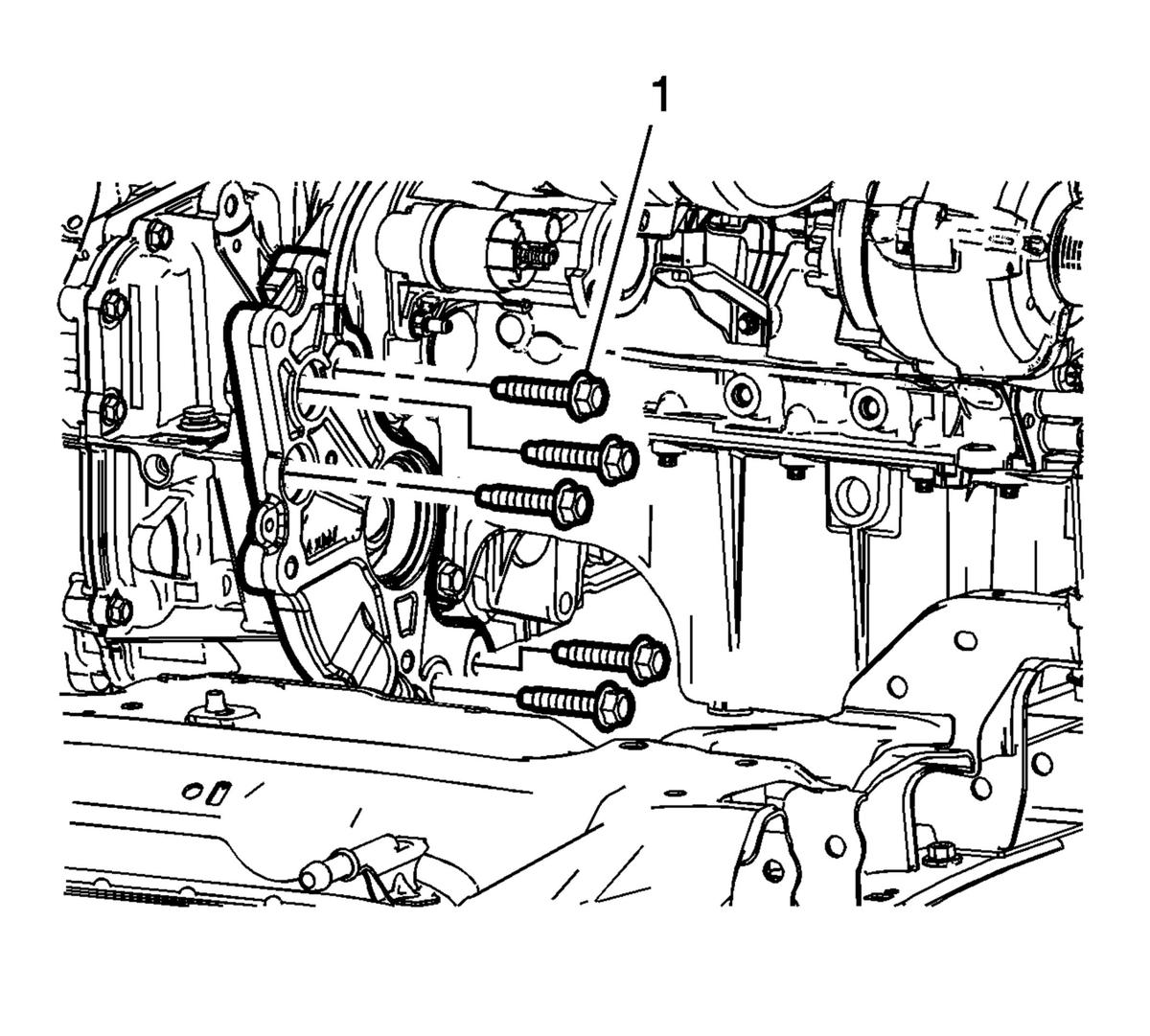

  3. GM2759903Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    For manual transmission, install the NEW transmission adapter to transmission fasteners (1) and tighten to 100 N.m (74 lb ft) plus 30 - 40 degrees.

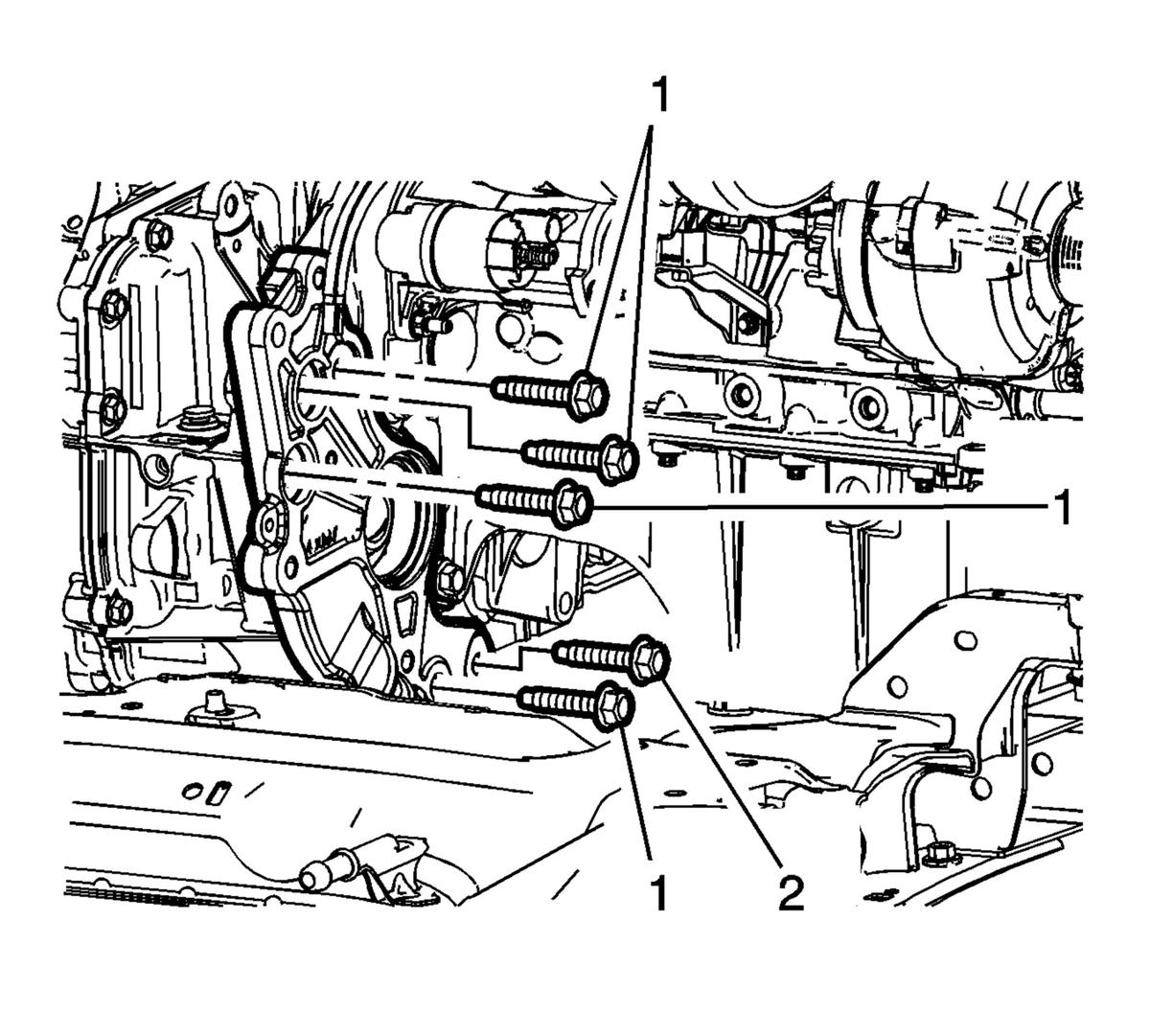

  4. GM2842321Courtesy of GENERAL MOTORS COMPANY

    For automatic transmission, install the NEW transmission adapter to transmission fasteners (1) and tighten to 100 N.m (74 lb ft) plus 30 - 40 degrees.

  5. Install the NEW transmission adapter to transmission fastener (2) and tighten to 60 N.m (44 lb ft) plus 60 - 75 degrees.
  6. GM2759935Courtesy of GENERAL MOTORS COMPANY

    Install the NEW rear transmission mount through bolt (1) and tighten to 80 N.m (59 lb ft) plus 45 - 60 degrees.

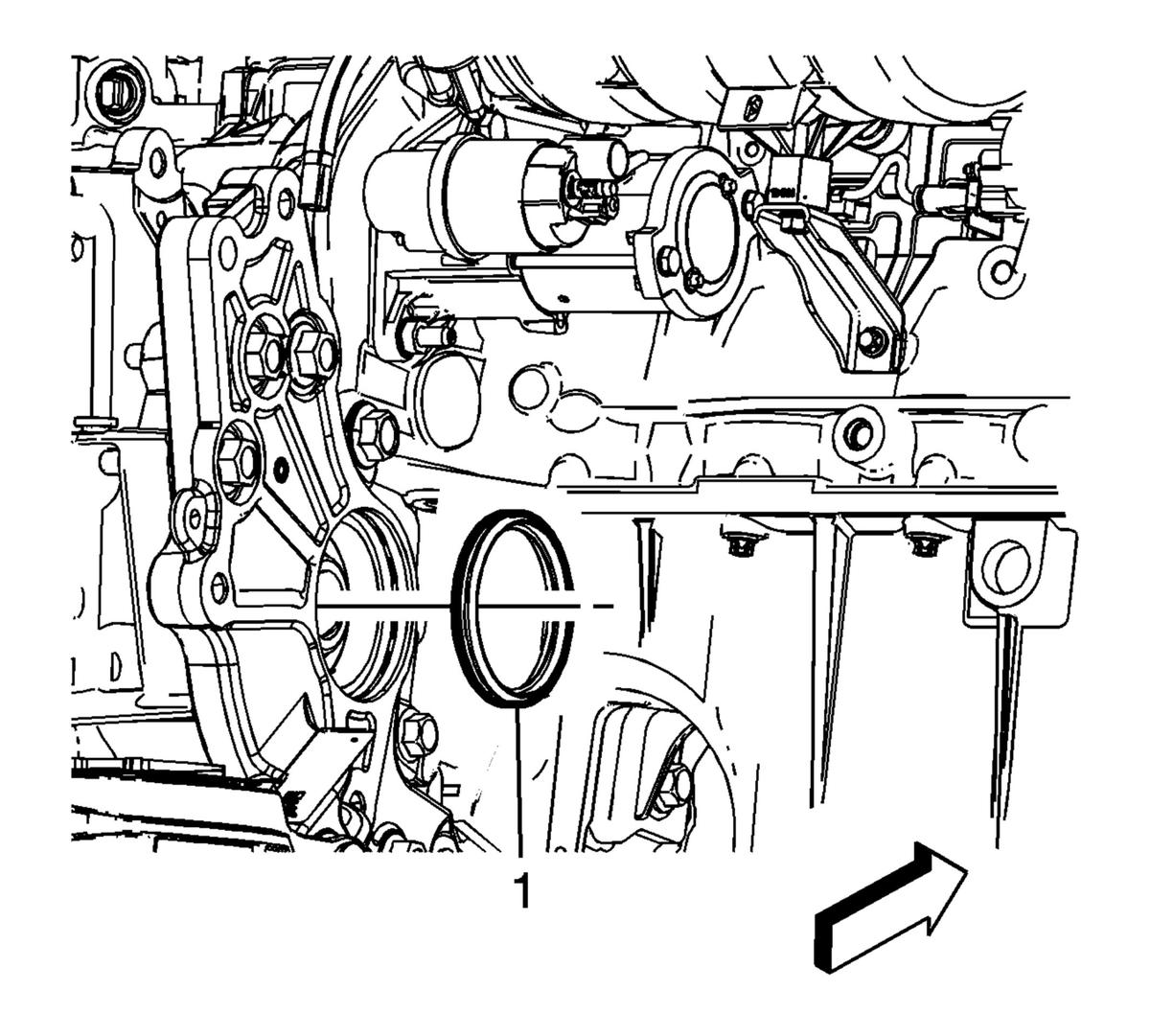

  7. GM2759854Courtesy of GENERAL MOTORS COMPANY

    Install the NEW transfer case adapter seal from the transmission adapter.

  8. Install the transfer case. Refer to Transfer Case Replacement .
