Front Wheel Drive Intermediate Shaft Components Installation
Front Wheel Drive Intermediate Shaft Components Installation

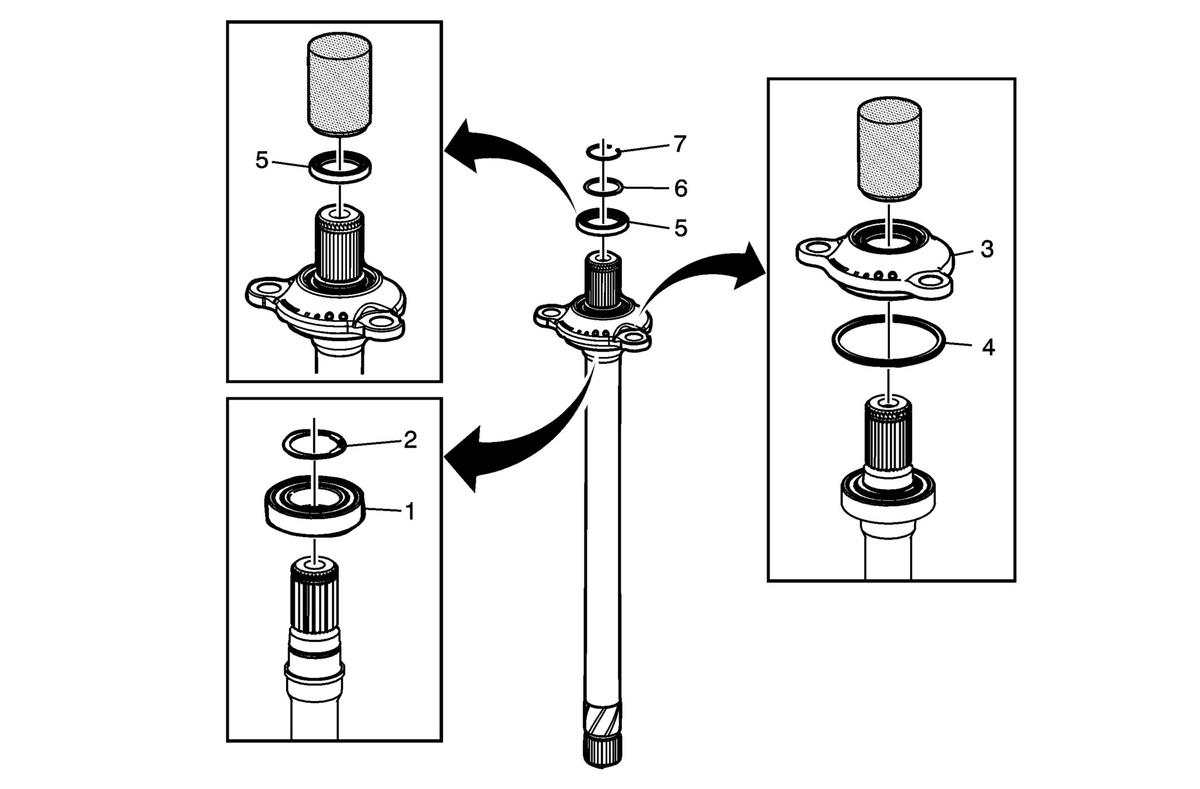

| Callout | Component Name |
|---|---|
| Preliminary Procedure The intermediate drive shaft is to be installed into the transfer case assembly after the transfer case assembly is installed into the vehicle. Prior to installation of the shaft into the assembly, seal protector DT-50937 must be installed to avoid front wheel drive intermediate shaft seal damage. Refer to Transfer Case Description and Operation - New Service Assembly for additional information. |
|
| 1 | Front Wheel Drive Intermediate Shaft Bearing
NOTE:
Use a press to install the bearing to the shaft. Special Tools DT-50985 Seal Installer For equivalent regional tools, refer to Special Tools . |
| 2 | Front Wheel Drive Intermediate Shaft Bearing Retaining Ring
CAUTION:
Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage. |
| 3 | Front Wheel Drive Intermediate Shaft Housing
NOTE:
Use a press to install the housing to the bearing. Special Tools DT - 50985 Seal Installer For equivalent regional tools, refer to Special Tools . |
| 4 | Front Wheel Drive Intermediate Shaft Housing Seal |
| 5 | Front Wheel Drive Intermediate Shaft Bearing Seal Special Tools DT - 50985 Seal Installer For equivalent regional tools, refer to Special Tools . |
| 6 | Front Wheel Drive Intermediate Shaft CV Joint Seal |
| 7 | Front Wheel Drive Intermediate Shaft Retaining Ring
CAUTION:
When installing a new bearing retaining ring, open the ring only as far as necessary to fit the ring over the shaft. Opening the ring too far will damage it.
NOTE:
Do not reuse the intermediate shaft retaining ring. Install a NEW ring during assembly. |
