Special Tools

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS COMPANY	CH-50342 Threaded Rod
Courtesy of GENERAL MOTORS COMPANY	DT - 113 - 2 - A J - 03289-20 KM - 113-2-A Holding Fixture
Courtesy of GENERAL MOTORS COMPANY	DT - 8092 DW340 - 010 GE-8092 J - 8092 KM-J-8092 Driver Handle

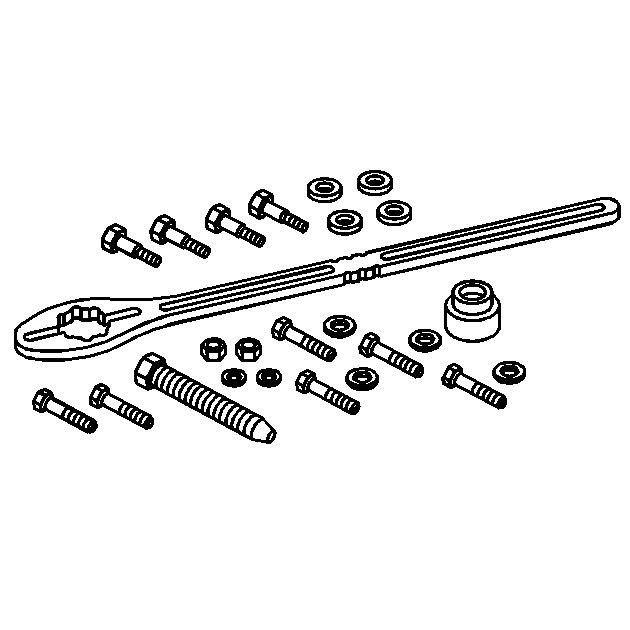

Courtesy of GENERAL MOTORS COMPANY	DT-08614 - A J-08614 - A Pinion Flange Holder and Remover
Courtesy of GENERAL MOTORS COMPANY	DT - 26941 J - 26941 Bushing and Bearing Remover - 3 - 4 in.
Courtesy of GENERAL MOTORS COMPANY	DT - 29369 - 1 J - 29369 - 1 Bushing and Bearing Remover
Courtesy of GENERAL MOTORS COMPANY	DT - 36842 J - 36842 Transaxle Holding Fixture
Courtesy of GENERAL MOTORS COMPANY	DT - 36850 J - 36850 Transjel Lubricant
Courtesy of GENERAL MOTORS COMPANY	DT-41819 J-41819 Input Shaft Seal Installer

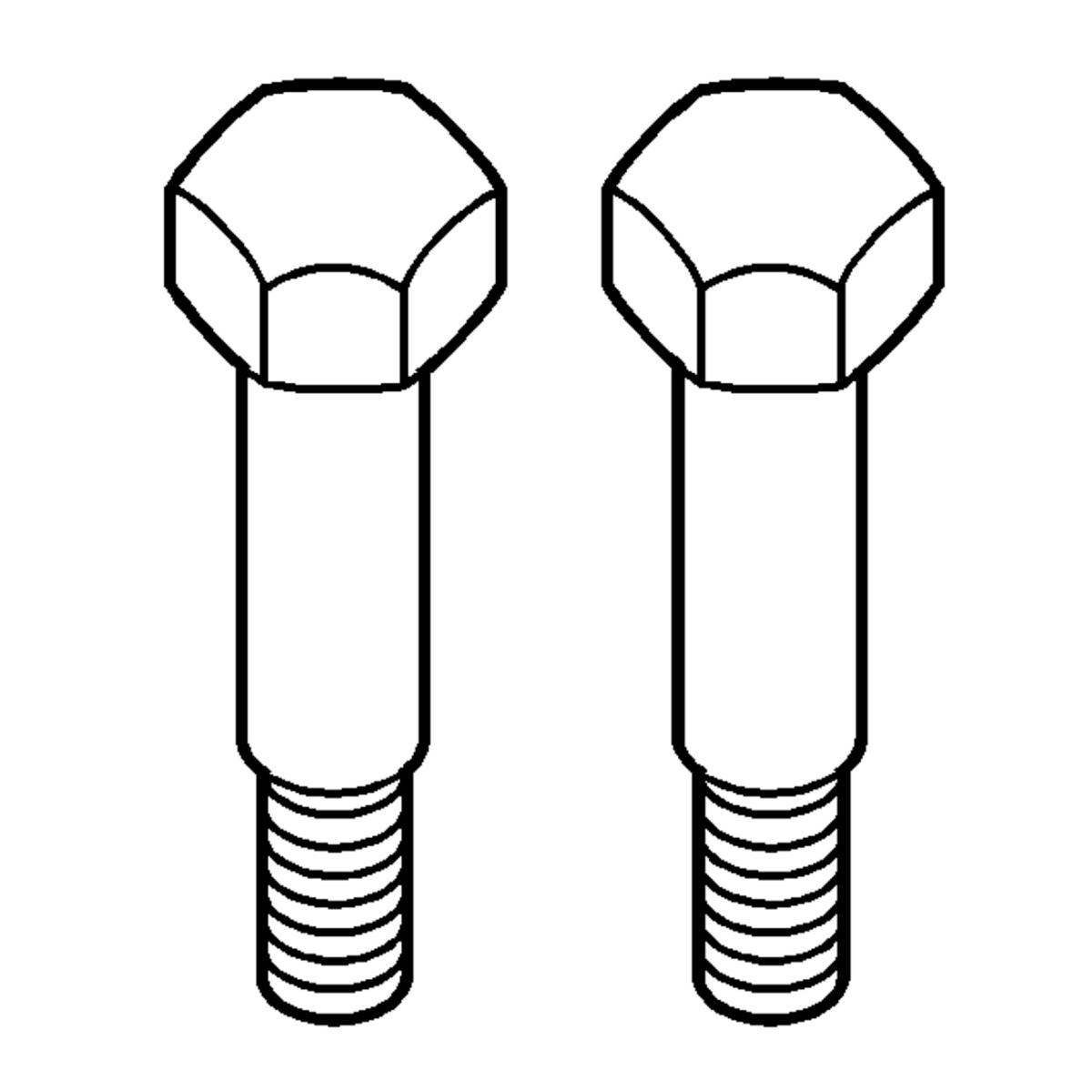

Courtesy of GENERAL MOTORS COMPANY	DT-44873 - 2 J-44873 - 2 Shoulder Bolts
Courtesy of GENERAL MOTORS COMPANY	DT-45124 J-45124 Removal Bridge
Courtesy of GENERAL MOTORS COMPANY	DT - 45756 J - 45756 Rear Output Shaft Seal Installer
Courtesy of GENERAL MOTORS COMPANY	DT - 50839 Adapter Plate Bushing Remover and Installer
Courtesy of GENERAL MOTORS COMPANY	DT - 50840 Input Shaft Seal Installer
Courtesy of GENERAL MOTORS COMPANY	DT-6332 DT-44394 DT-48877 Seal Protector
Courtesy of GENERAL MOTORS COMPANY	DT - 50985 Seal Installer
Courtesy of GENERAL MOTORS COMPANY	GE- 28431 - 6 J - 28431 - 6 Florescent Oil Dye - 6 1 oz.
Courtesy of GENERAL MOTORS COMPANY	GE-42220 J-42220 High-Intensity Black Light Kit
