Front Wheel Drive Intermediate Shaft Components Removal
Front Wheel Drive Intermediate Shaft Components Removal

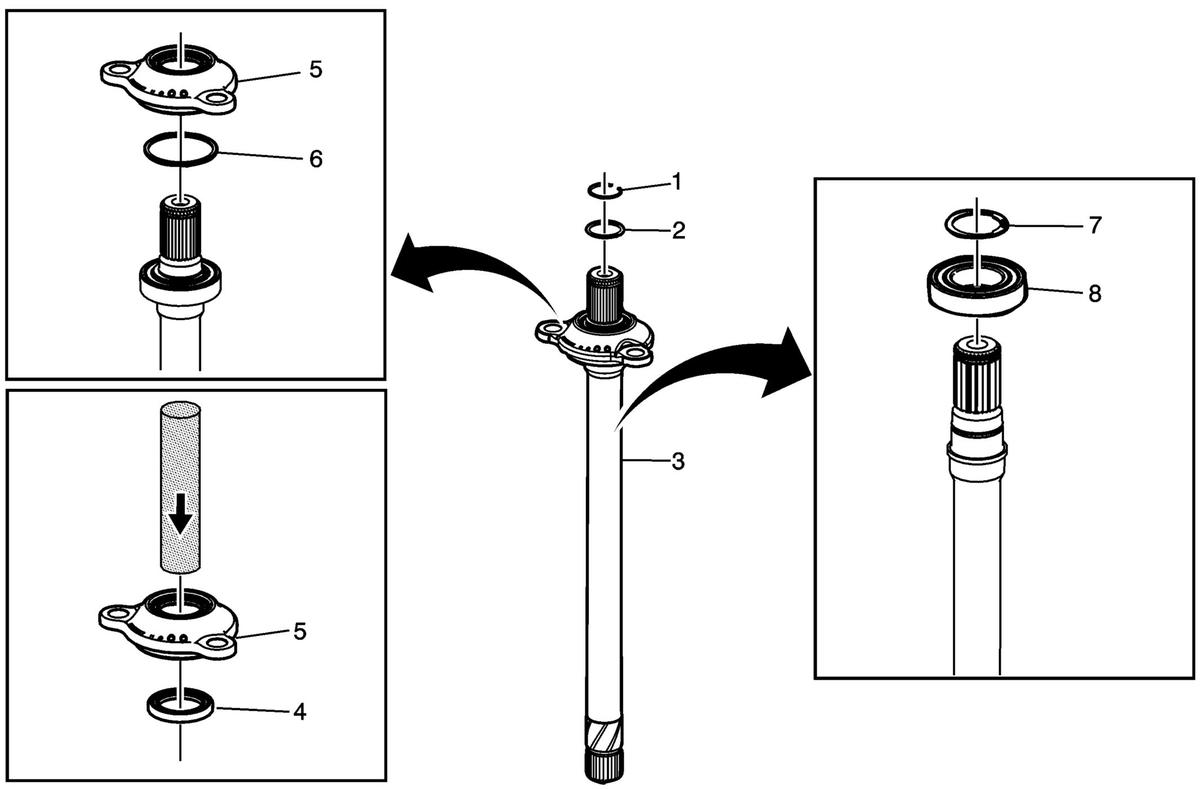

| Callout | Component Name |
|---|---|
|
NOTE:
The intermediate drive shaft is to be removed from the transfer case assembly prior to the transfer case assembly being removed from the vehicle. Prior to removal of the shaft from the assembly, seal protector DT-50937 must be installed to avoid front wheel drive intermediate shaft seal damage. Refer to Transfer Case Description and Operation - New Service Assembly for additional information. |
|
| 1 | Front Wheel Drive Intermediate Shaft CV Joint Retaining Ring |
| 2 | Front Wheel Drive Intermediate Shaft CV Joint Seal |
| 3 | Front Wheel Drive Intermediate Shaft Assembly |
| 4 | Front Wheel Drive Intermediate Shaft Bearing Seal
NOTE:
Use a press to remove the seal from the housing. Use care to prevent damage to the housing seal bore. |
| 5 | Front Wheel Drive Intermediate Shaft Housing
NOTE:
Use a press to remove the bearing from the housing. |
| 6 | Front Wheel Drive Intermediate Shaft Housing Seal |
| 7 | Front Wheel Drive Intermediate Shaft Bearing Retaining Ring
CAUTION:
Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage. |
| 8 | Front Wheel Drive Intermediate Shaft Bearing
NOTE:
Use a press to remove the bearing from the shaft. |
