Turn Signal Switch Replacement (Trax, Without BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Reposition the steering column upper trim cover as necessary. Steering Column Upper Trim Cover Replacement (Trax, Without BTM) Ignition Lock Cylinder Opening Trim Cover Replacement Steering Column Lower Trim Cover Replacement (Trax, Without BTM)

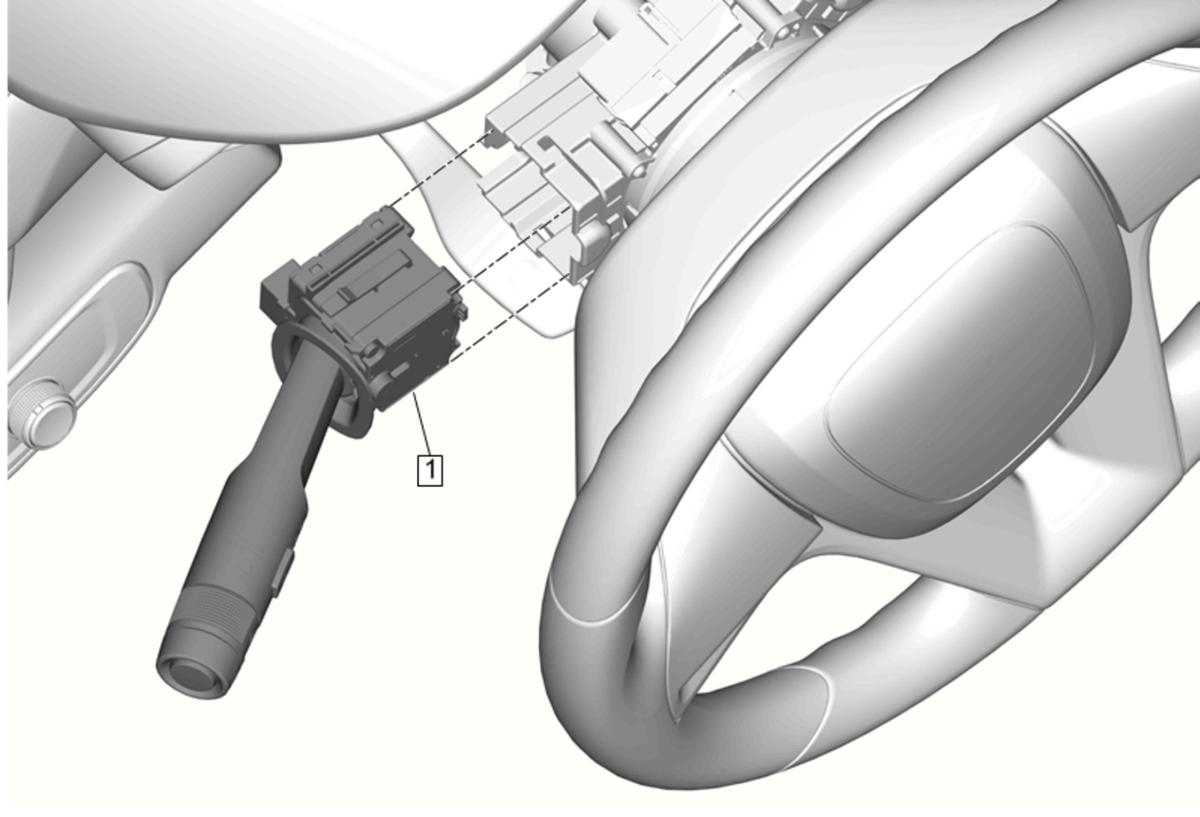

1	Turn Signal Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedures

Turn Signal Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.
