Turn Signal Switch Bracket Replacement (Trax, Without BTM)

Courtesy of GENERAL MOTORS COMPANY

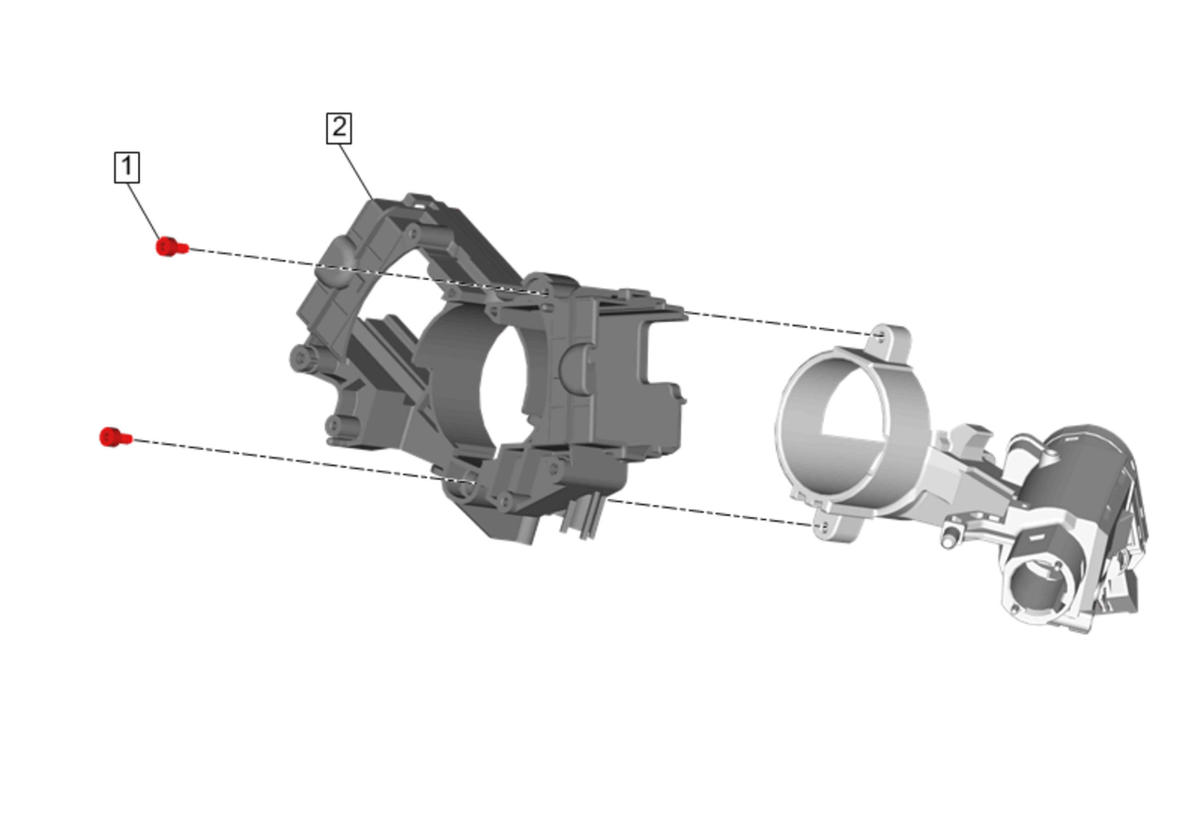

Callout	Component Name
Preliminary Procedure  Ignition and Start Switch Housing Replacement (Trax)
1	Turn Signal Switch Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  15 N.m (11 lb ft)
2	Turn Signal Switch Bracket
