Turn Signal Switch Bracket Replacement (Trax, With BTM)

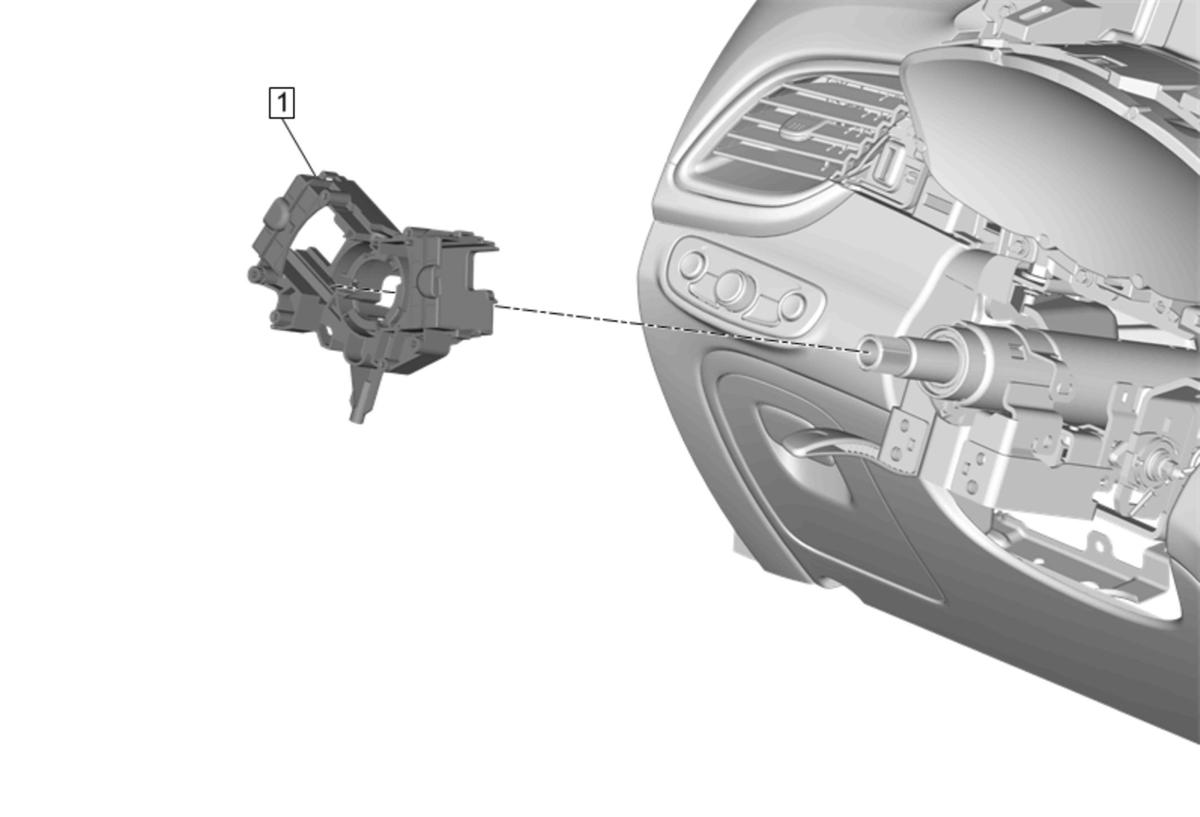

GM4473894Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Coil Replacement (Trax, With BTM)
  2. Turn Signal Switch Replacement (Trax, With BTM)
  3. Windshield Wiper and Windshield Washer Switch Replacement (Trax, With BTM)
1 Turn Signal Switch Bracket
Procedure
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
