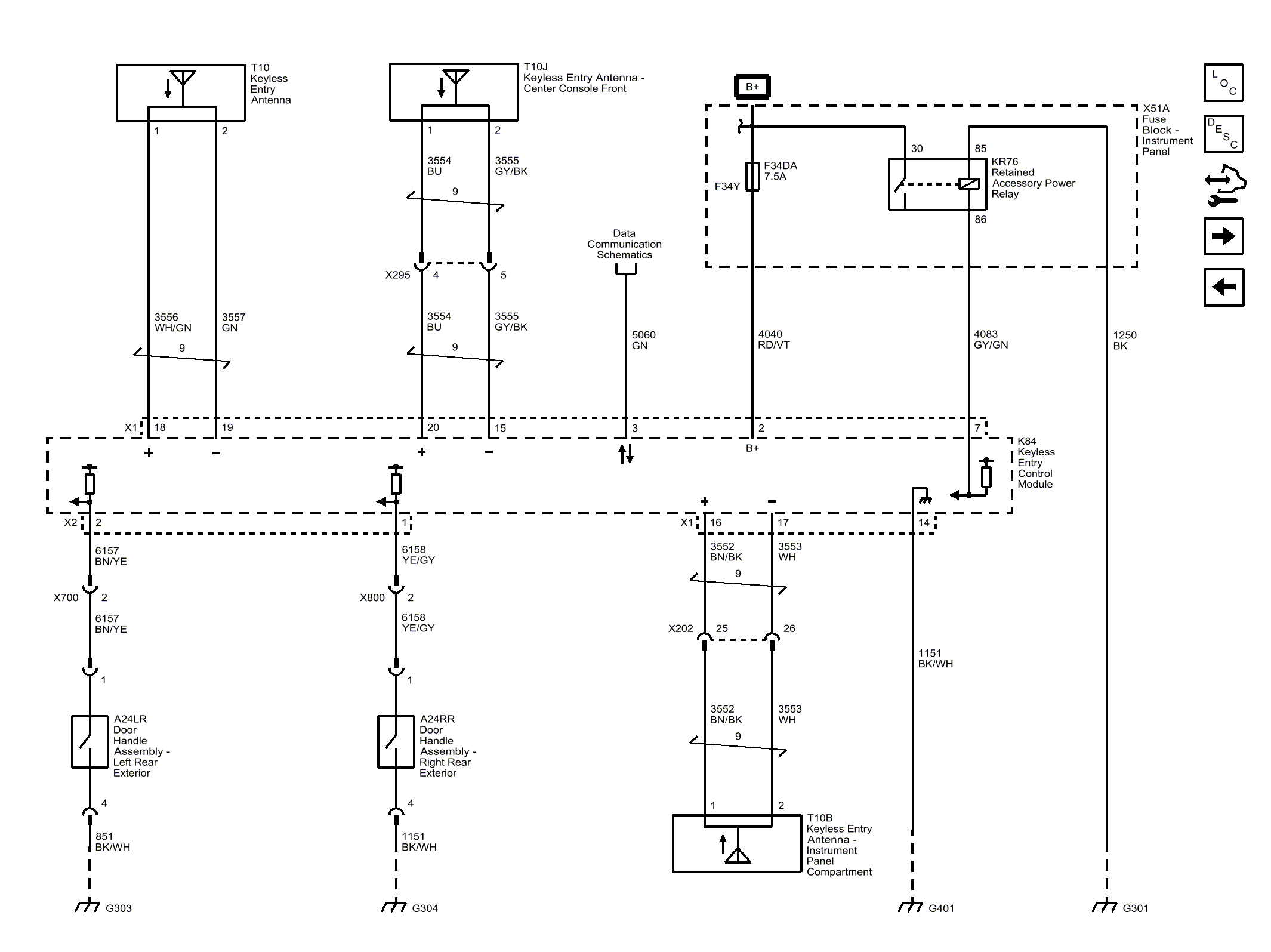

Keyless Entry - Passive Entry and Keyless Start (2 of 2) (Buick)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
GM4704721
