Section 92 (Driver Assistance Systems)
>>
Schematic Wiring Diagrams
>>
Driver Assistance Systems Wiring Schematics (Encore)
>>

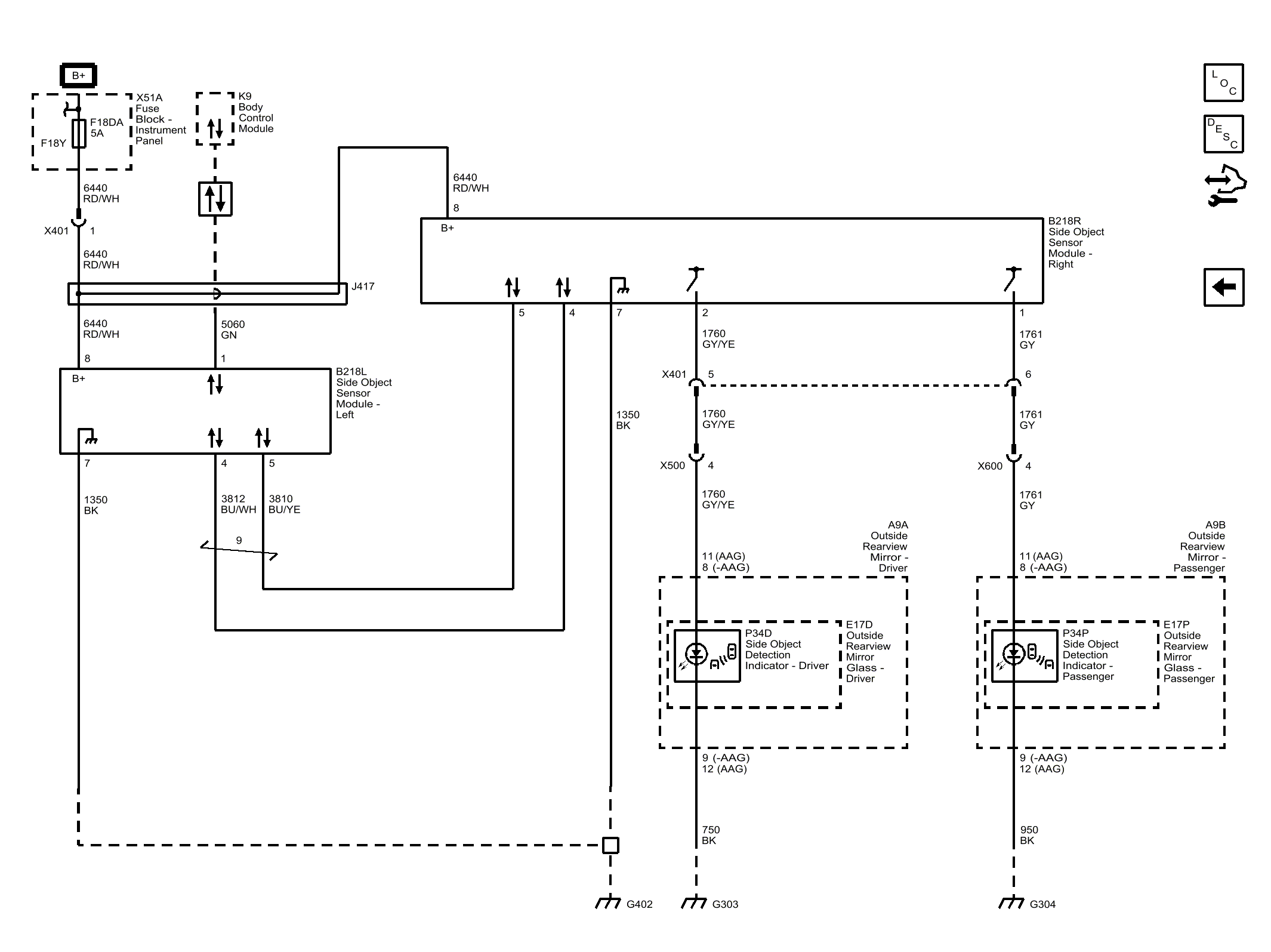

Side Object Detection (Buick with UFT)
Side Object Detection (Buick with UFT)
WARNING:
This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
