Stop Bulb Replacement (Chevrolet with UGE)
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

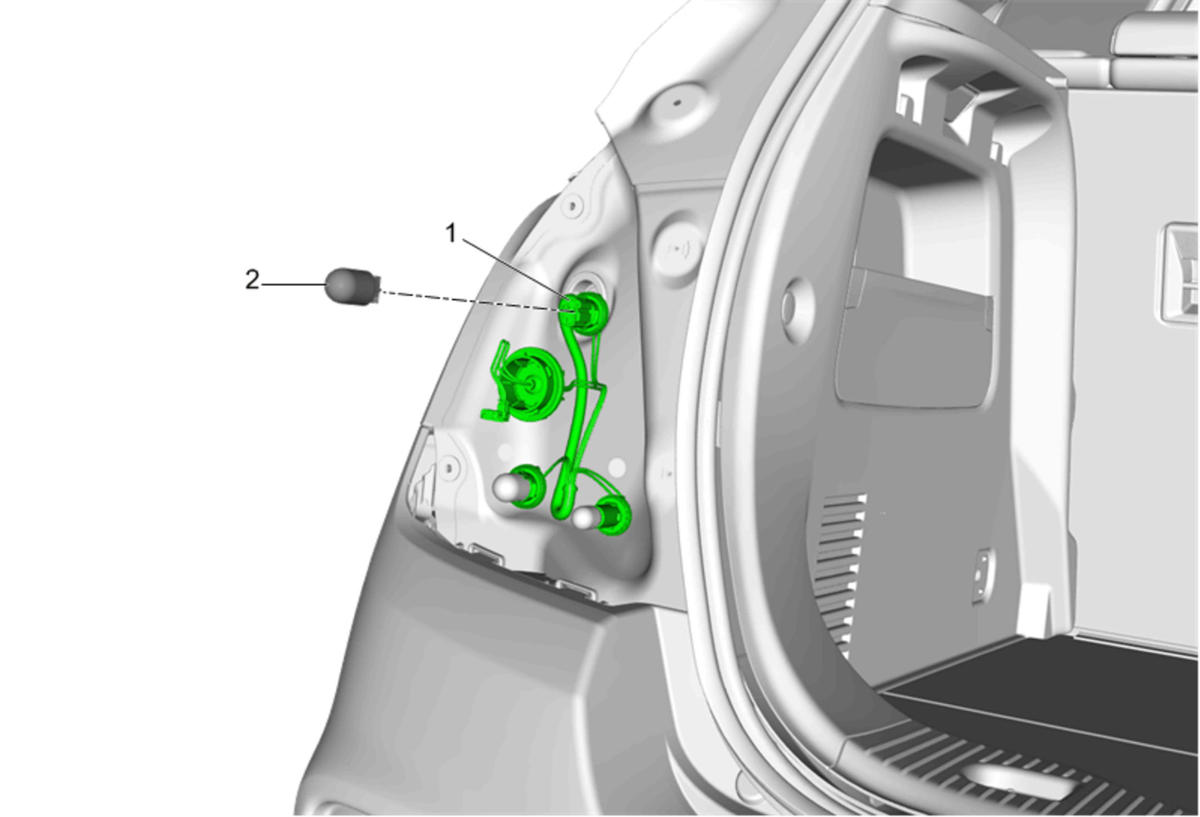

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition and support the rear body structure stop lamp. Rear Body Structure Stop Lamp Replacement (Chevrolet with UGE) |
|
| 1 | Stop Lamp Bulb Socket Procedure Rotate the bulb socket a quarter turn counterclockwise and remove. |
| 2 | Stop Bulb Procedure Pull the bulb straight from the lamp socket. |
