Front Fog Lamp Replacement (Buick)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

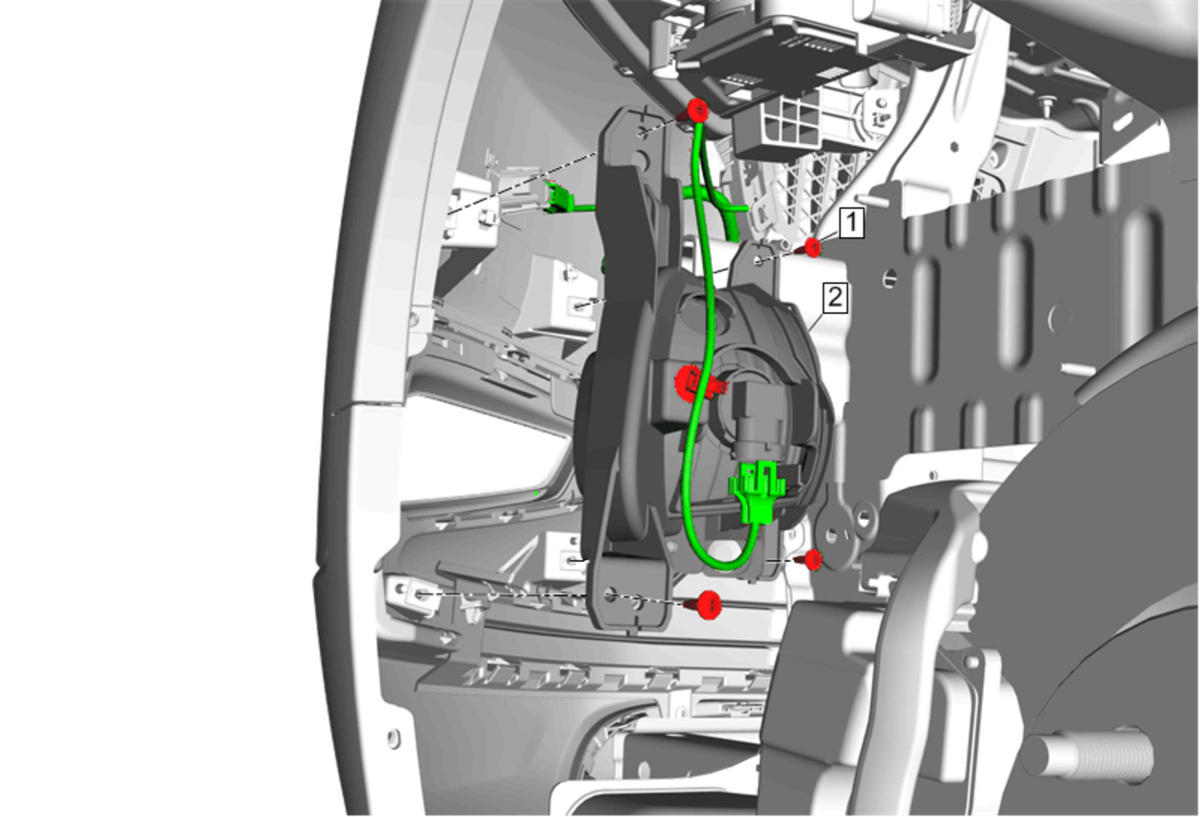

Callout	Component Name
Preliminary Procedure Horn Replacement (Buick)
1	Front Fog Lamp Cover Screw [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Fog Lamp Procedure Disconnect the electrical connector. Transfer components as necessary. Aim the front fog lamps after replacement. Fog Lamp Aiming

Callout

Component Name

Preliminary Procedure
Horn Replacement (Buick)

Front Fog Lamp Cover Screw [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Fog Lamp

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Aim the front fog lamps after replacement. Fog Lamp Aiming
