Front Fog Lamp Bulb Replacement (Chevrolet)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement (Chevrolet)

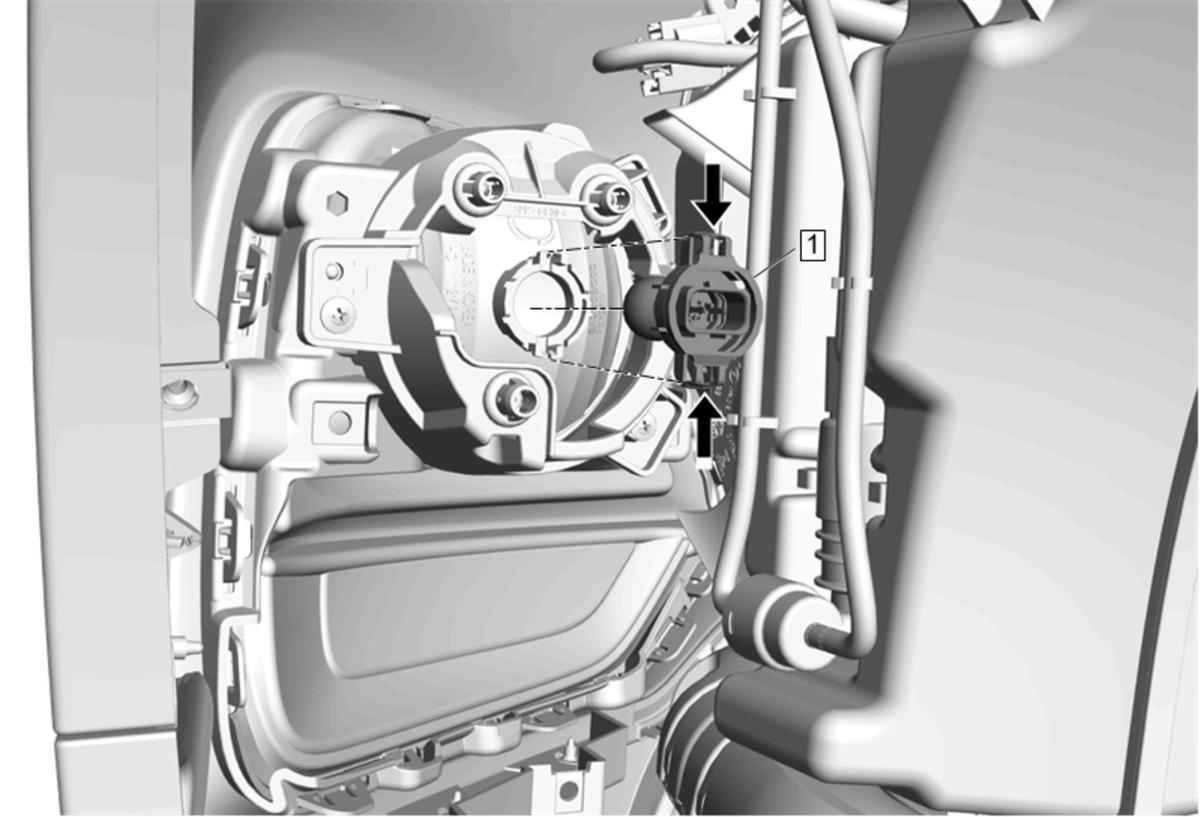

1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Depress the locking tabs and pull the front fog lamp bulb from the front fog lamp.

Callout

Component Name

Preliminary Procedure
Front Wheelhouse Liner Replacement (Chevrolet)

Front Fog Lamp Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector.
Depress the locking tabs and pull the front fog lamp bulb from the front fog lamp.
