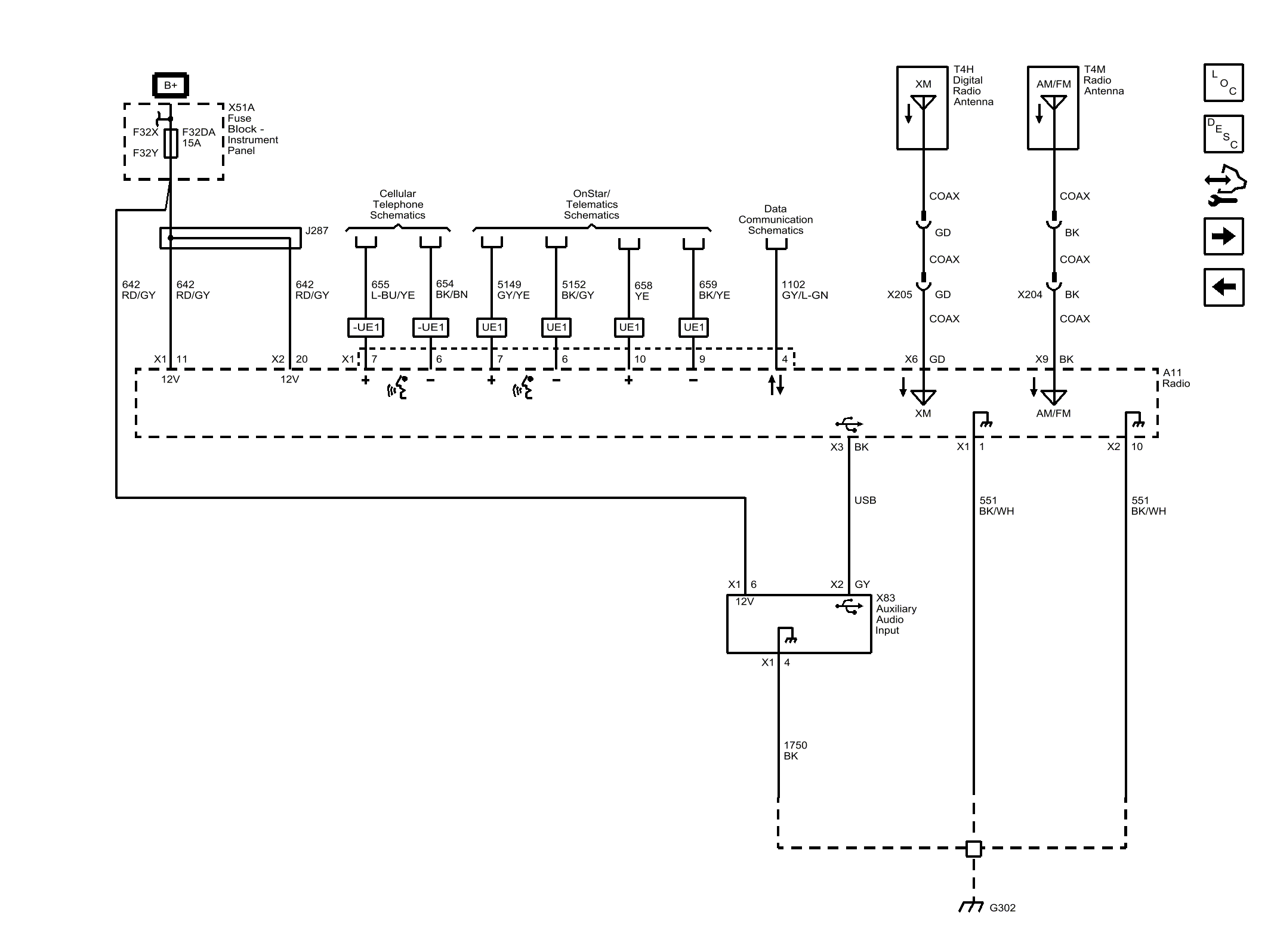

Power, Ground, Serial Data, and Audio/Video Inputs (Chevrolet with IOA)

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
