Heater and Air Conditioning Remote Control Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) Heater and Air Conditioning User Interface Control Replacement
1	Heater and Air Conditioning Remote Control NOTE: When reconnecting the heater and air conditioning remote module, the BROWN J2 connector must be connected last. Once all the parts are all in place, check and clear all DTCs in the heater and air conditioning remote control. Procedure Un-latch the heater and air conditioning remote control from the Instrument panel and maneuver out from Instrument panel. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) Perform the necessary programming and setup procedure:Control Module References Clear the DTCs from the heater and air conditioning remote control module. Perform the actuator calibration procedure. Actuator Recalibration

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
Heater and Air Conditioning User Interface Control Replacement

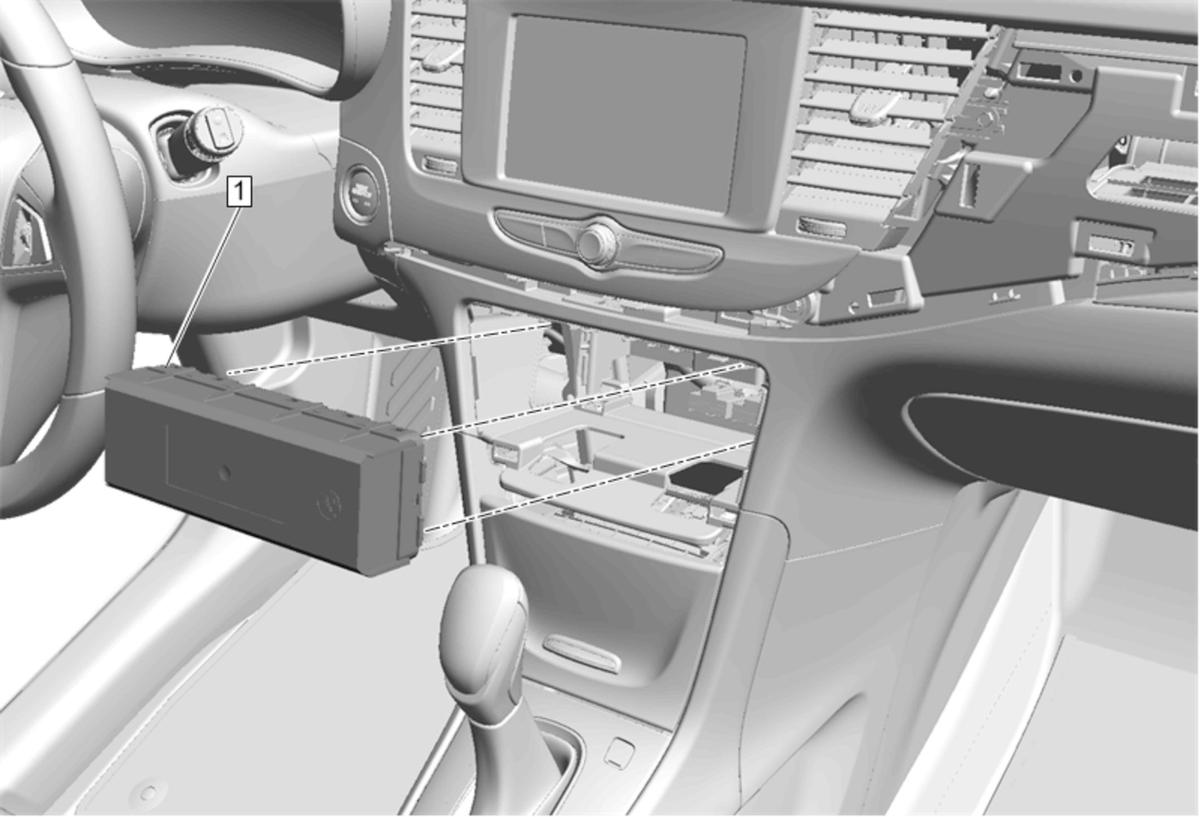

Heater and Air Conditioning Remote Control

NOTE:

When reconnecting the heater and air conditioning remote module, the BROWN J2 connector must be connected last. Once all the parts are all in place, check and clear all DTCs in the heater and air conditioning remote control.

Procedure

Un-latch the heater and air conditioning remote control from the Instrument panel and maneuver out from Instrument panel.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
Perform the necessary programming and setup procedure:Control Module References
Clear the DTCs from the heater and air conditioning remote control module.
Perform the actuator calibration procedure. Actuator Recalibration
