Radio Volume Compensator Interior Noise Microphone Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (Without Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Chevrolet)Headlining Trim Panel Replacement (Without Sunroof, Chevrolet) .

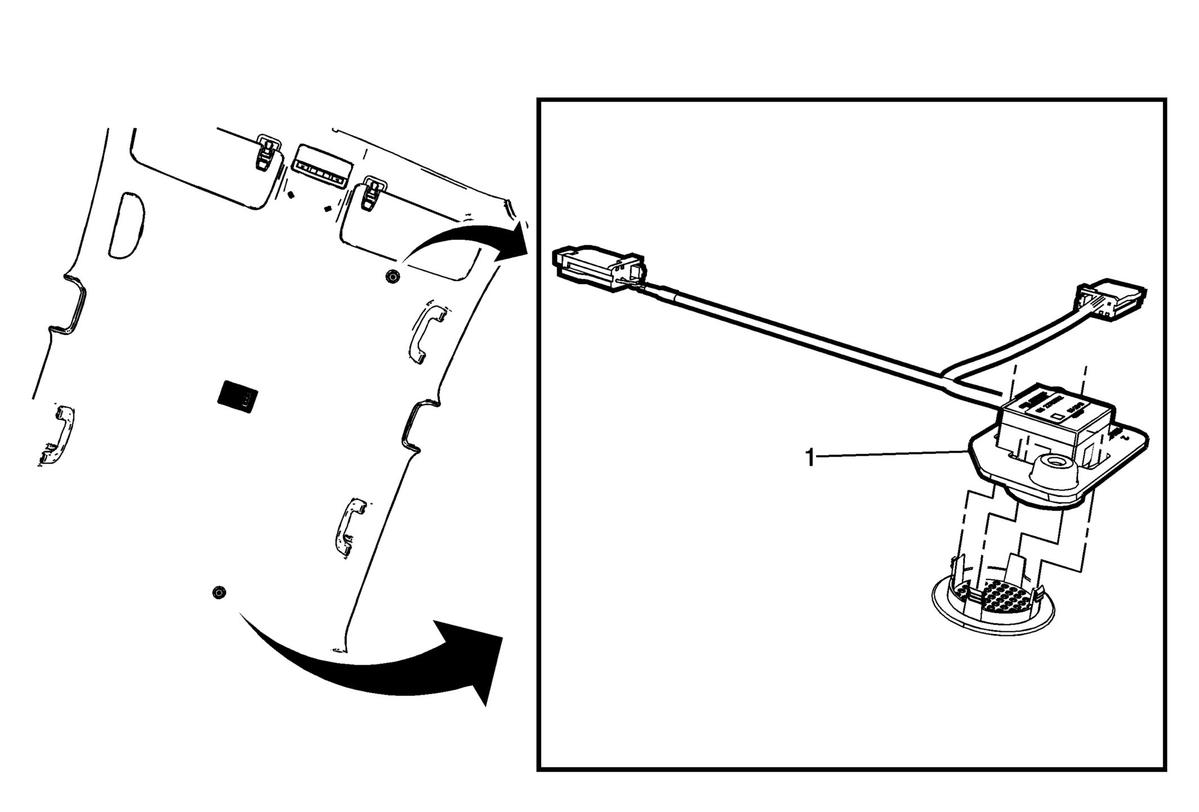

1	Radio Volume Noise Compensator Interior Noise Microphone Procedure Disconnect the electrical connector. Note the foam position around the front of the microphone and the center foam plug over the top of the microphone to ensure proper installation. Remove the foam plug from the top of the microphone and large foam patch from around the microphone. Unsnap the microphone from the grille assembly bracket.

Callout

Component Name

Preliminary Procedure
Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (Without Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Chevrolet)Headlining Trim Panel Replacement (Without Sunroof, Chevrolet) .

Radio Volume Noise Compensator Interior Noise Microphone

Procedure

Disconnect the electrical connector.
Note the foam position around the front of the microphone and the center foam plug over the top of the microphone to ensure proper installation.
Remove the foam plug from the top of the microphone and large foam patch from around the microphone.
Unsnap the microphone from the grille assembly bracket.
