Radio Speaker Amplifier Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

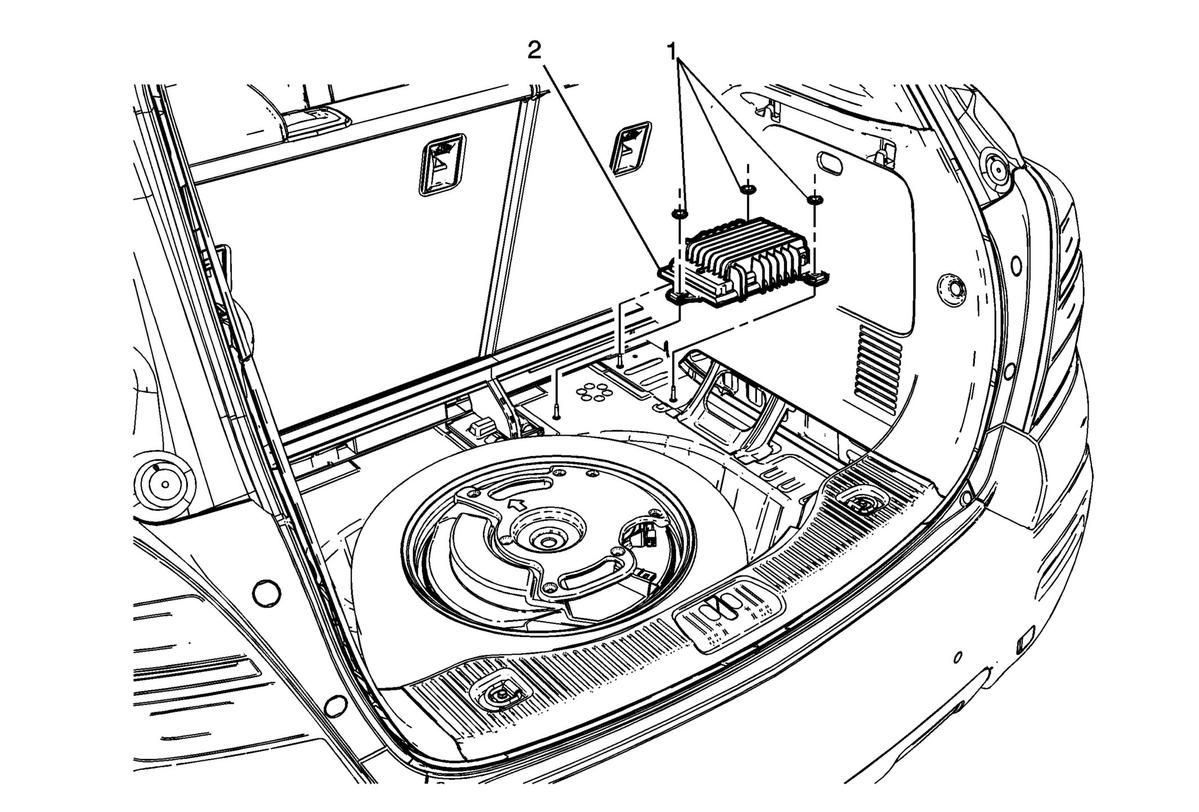

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the load floor front trim panel support - right side. Refer to Load Floor Front Trim Panel Support Replacement (Buick)Load Floor Front Trim Panel Support Replacement (Chevrolet) . |
|
| 1 | Radio Speaker Amplifier Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Speaker Amplifier Procedure Disconnect the electrical connectors. |
