High Frequency Antenna Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

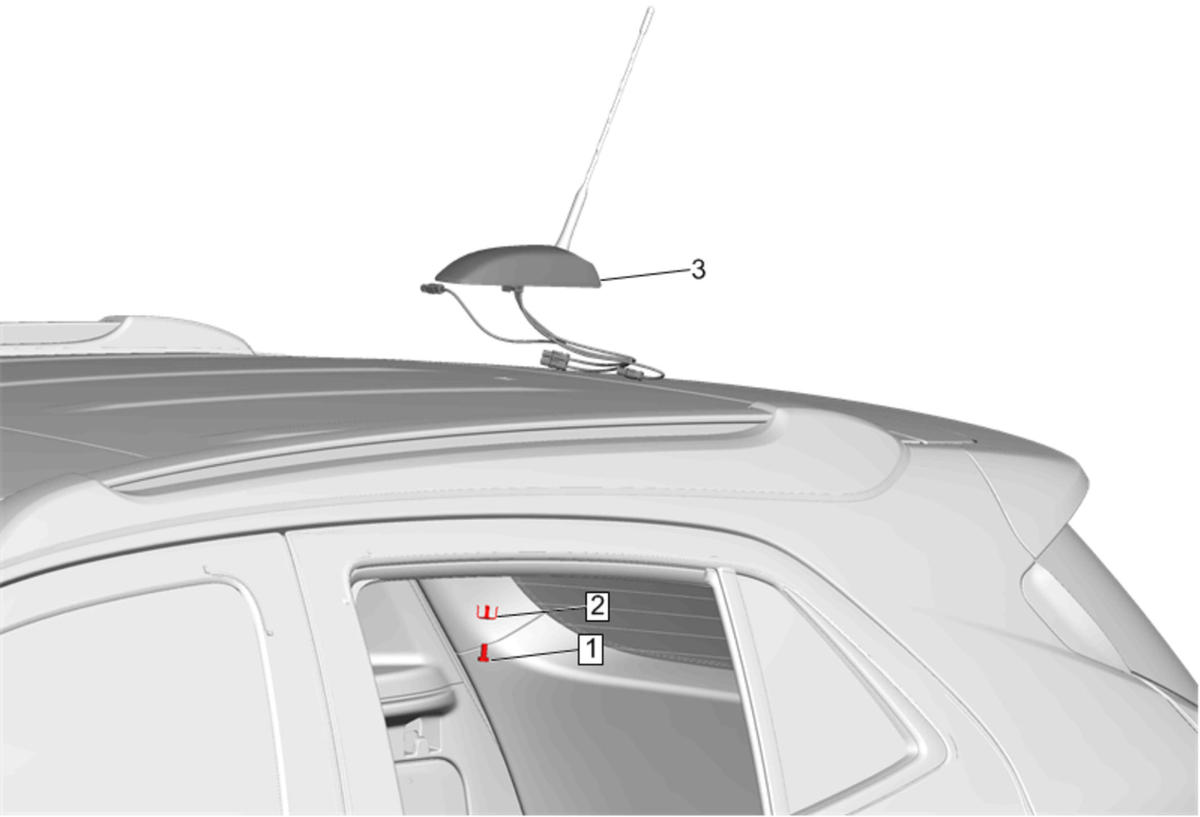

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (Without Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Chevrolet)Headlining Trim Panel Replacement (Without Sunroof, Chevrolet)
1	High Frequency Antenna Bolt CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	High Frequency Antenna Retainer NOTE: Discard the retainer and replace with a new retainer.
3	High Frequency Antenna Procedure Disconnect the electrical connectors. Fully remove the old bolt and retainer prior to removing antenna through roof. New antenna bolt and retainer will fit through roof opening prior to tightening the bolt and compressing the retainer. Transfer components as necessary.
