Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

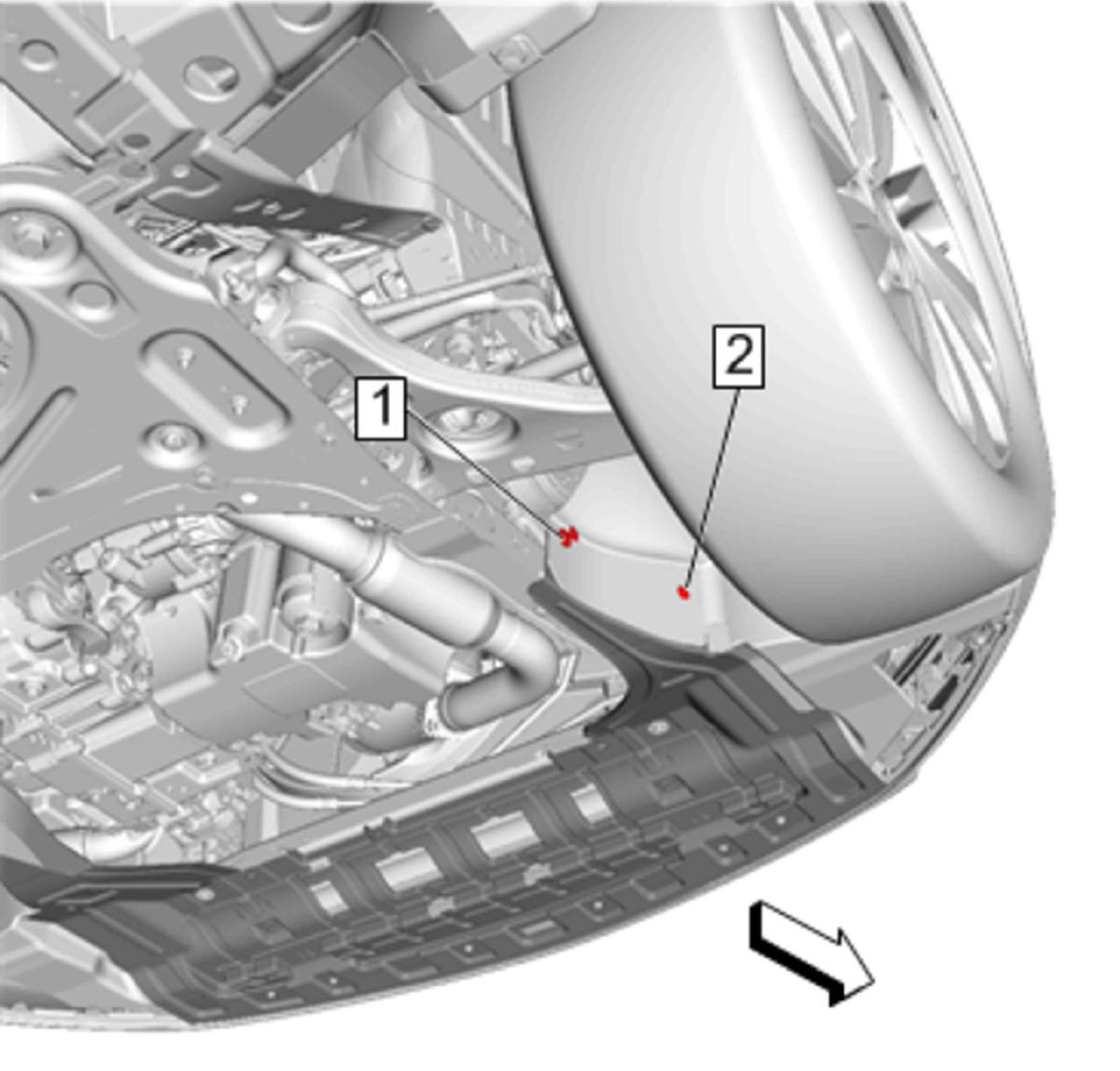

  2. GM4376405

    Front Wheelhouse Liner Retainer (1) - Remove

  3. Front Wheelhouse Liner Screw (2) - Remove

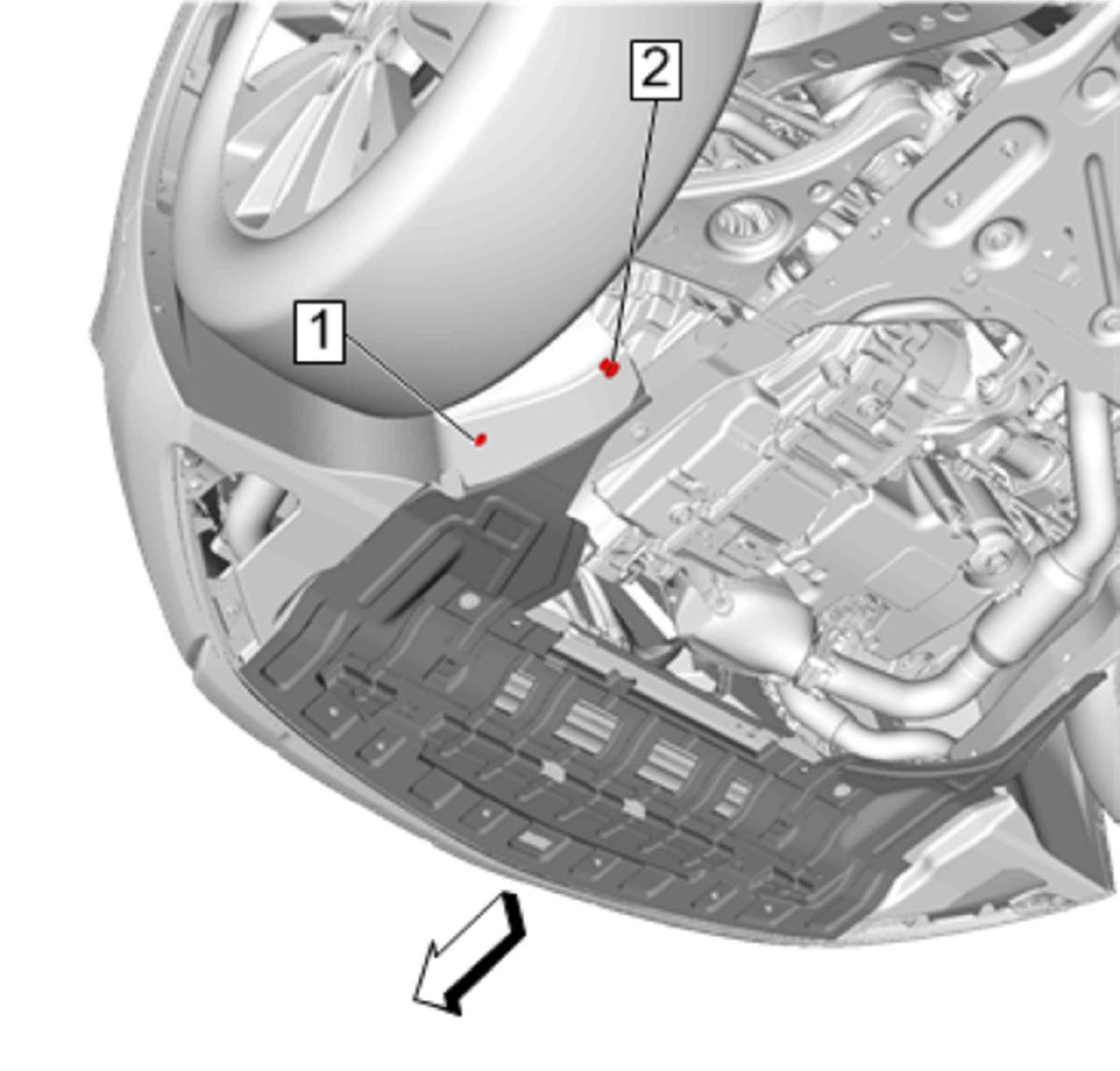

  4. GM4376407

    Front Wheelhouse Liner Screw (1) - Remove

  5. Front Wheelhouse Liner Retainer (2) - Remove

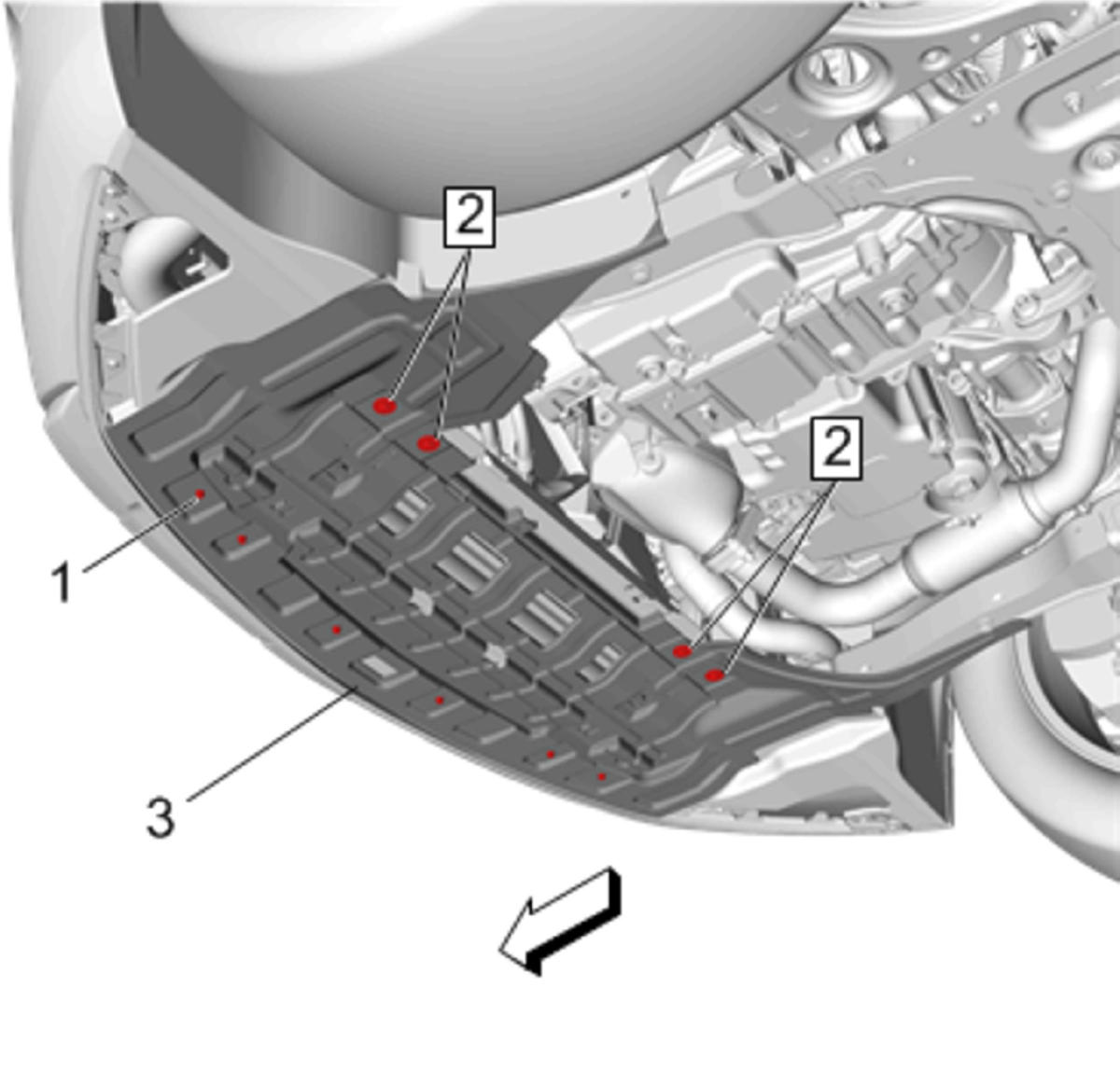

  6. GM4376409

    Underbody Front Air Deflector Bolt (1) - Remove [6x]

  7. Underbody Front Air Deflector Bolt (2) - Remove [4x]
  8. Underbody Front Air Deflector (3) - Remove
